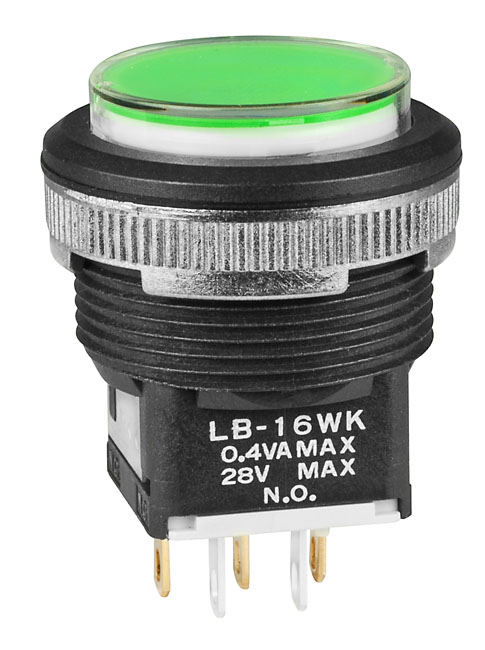

NKK Switches LB16WKG015FJF Waterproof Pushbutton Switch
This standard size illuminated waterproof pushbutton switch is engineered for durability and reliability in harsh environments. It features full surface illumination with front panel relamping, available in single and bicolor LEDs in white, green, blue, red, amber, and green. The switch is sealed to meet IP65 standards, ensuring protection against dust and water ingress. It incorporates a snap-action contact mechanism for long electrical life, a latchdown feature for circuit status indication, and secure mounting with stainless steel clips suitable for various panel thicknesses. Ideal for industrial control and automation applications requiring rugged, waterproof operation.
NKK Switches LB16WKG015FJF Waterproof Pushbutton Switch Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts; 1,500V AC minimum between contacts and case
- Electrical Ratings: 3A @ 125/250V AC or 0.4VA @ 28V AC/DC
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Vibration: 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration in 6 directions
- Sealing: IP65 IEC60529 standard, similar to NEMA 4 & 13
- Mounting Torque: 1.96Nm (17.35 lbs-in)
- Actuator Travel: Pretravel 1.5mm; Overtravel 1.5mm; Total travel 3.0mm
- Mounting Panel Thickness: 1.0mm to 4.0mm recommended, with splash cover up to 3.5mm
- Standards & Certifications: UL, CSA recognized when ordered with markings, UL94V-0 housing and base
Buy the NKK Series LB Waterproof Pushbutton: LB16WKG015FJF
Discover the high-performance waterproof illuminated pushbutton switch designed for industrial applications requiring superior durability and IP65 sealing. Featuring bright full surface LED illumination, long electrical life snap-action contacts, and secure stainless steel mounting clips, this switch stands out in harsh environments. Perfect for automation and control panels, it ensures reliable operation regardless of dust or water exposure. Order online today to enhance your control solutions with this rugged, waterproof pushbutton switch that delivers dependable performance under tough conditions.
Buy NKK Series LB waterproof illuminated pushbutton switch now and experience unmatched durability and reliable waterproof operation in harsh environments.
Frequently Asked Questions
Where can I buy NKK Switches LB16WKG015FJF?
You can click on the BUY or RFQ button to purchase LB16WKG015FJF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16WKG015FJF?
You can download the LB16WKG015FJF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16WKG015FJF?
NKK Switches
