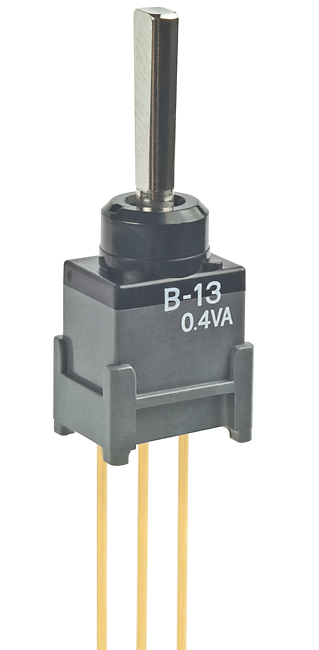

NKK Switches B13EW Subminiature Toggle Switch
This compact subminiature toggle switch is designed for PC applications, offering space-saving solutions with high reliability. It features a sealed body construction to prevent contamination, static discharge prevention through antistatic superstructure, and a robust STC contact mechanism ensuring smooth, positive actuation and high contact stability. Suitable for low-voltage, low-current logic circuits, it comes with options for locking levers, panel mounting with IP65 seal, and various pole and circuit configurations. Ideal for space-constrained industrial, automation, or electronic applications requiring durable and interference-resistant toggles.
NKK Switches B13EW Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max
- Insulation Resistance: 500 megohms min @ 500V DC
- Dielectric Strength: 500V AC for 1 min
- Mechanical Life: 100,000 operations min
- Electrical Life: 50,000 operations min
- Nominal Operating Force: 1.47N (long paddle toggles), 2.72N (short paddle toggles), 0.59N (toggle L)
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours at 40°C
- Vibration: 10-55Hz with 1.5mm amplitude for 2 hours
- Shock: 50G acceleration in all directions
- Materials & Finishes: Nickel-plated brass, carbon blended polyamide, nitrile butadiene rubber, glass fiber reinforced polyamide, tin-plated phosphor bronze, gold-plated copper alloy
- Mounting: Panel seal with threaded bushing (IP65 compliance), support bracket recommended
- Soldering: Wave and manual soldering compatible, automated cleaning suitable
- Certifications: UL9AV-0 (not UL or CSA recognized)
Buy the Buy NKK Switches Process Sealed Subminiature Antistatic Toggles Part Number B13EW Online
Enhance your electronics with the durable, space-saving NKK Switches B13EW toggle. Engineered for low-voltage logic circuits, its sealed, antistatic design ensures contamination resistance and long-term performance. Ideal for compact installations requiring reliable actuation, it features multiple configurations including locking levers and panel mount options. Easy to solder, clean, and install, this switch provides a stable, interference-free connection. Perfect for industrial, automation, or electronic applications needing high-quality toggle switches with guaranteed specifications and longevity.
Get NKK Switches B13EW today—designed for space-efficient, reliable switching in your electronic and industrial projects.
Frequently Asked Questions
Where can I buy NKK Switches B13EW?
You can click on the BUY or RFQ button to purchase B13EW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B13EW?
You can download the B13EW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B13EW?
NKK Switches
