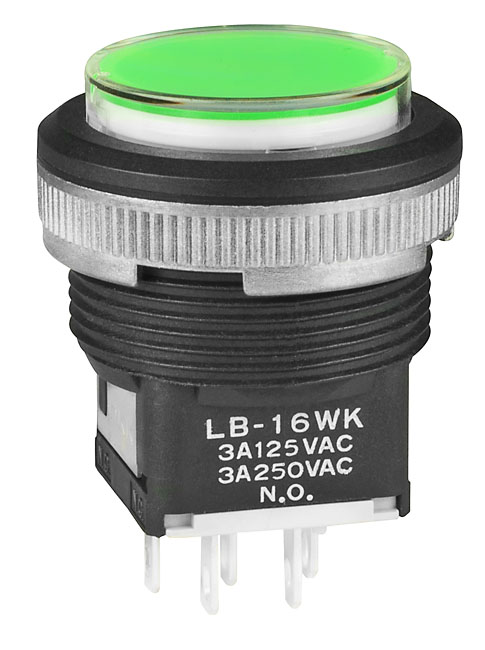

NKK Switches LB16WKW015FJF sealed industrial pushbutton
The illuminated pushbutton switch offers reliable, waterproof operation designed for demanding environments. Featuring a compact design, it provides bright surface illumination with optional bicolor LEDs and a choice of bright red, amber, green, white, blue, and standard LEDs. Incorporating a snap-action contact mechanism, it ensures long electrical life and sensitive actuation. Mounting is secure via stainless steel clips matching various panel thicknesses, with a latchdown feature for circuit status indication. Sealed to IP65 standards, it is suitable for harsh industrial, outdoor, and control panel applications, combining durability with versatile illumination options.
NKK Switches LB16WKW015FJF sealed industrial pushbutton Specifications:
- Housing Color: Black
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit; 200,000 operations minimum for maintained circuit
- Electrical Ratings: 3A @ 125/250V AC or 0.4VA @ 28V AC/DC
- Operating Temperature Range: -25°C to +50°C for illuminated models
- Seal: IP65 according to IEC60529, similar to NEMA 4 & 13
- Mounting Torque: 1.96Nm (17.35 lbs-in)
- Panel Thickness Compatibility: 0.039” to 0.157” (1.0mm to 4.0mm)
- Material: Polycarbonate, UL94V-0 rated
- Lamps & LEDs: Incandescent, neon, bright, super bright with resistor options
- Button Shape: Round
- Switch Mechanism: Snap-action, break-before-make
- Terminal Types: Solder lug, quick connect, with epoxy sealing
- Standards & Certifications: UL, cUL, CSA recognized
Buy the NKK Series LB Pushbutton: LB16WKW015FJF
Get your NKK Series LB16WKW015FJF waterproof illuminated pushbutton now and enhance your industrial controls with this durable, IP65 sealed switch featuring bright LED illumination options. Designed for harsh environments, it offers secure mounting, long electrical life, and a variety of LED and lamp choices, including bright red, amber, green, white, and blue. Perfect for demanding outdoor or industrial applications, this switch ensures reliable operation, easy installation, and compliance with standards like UL, CSA, and IEC. Order online now and upgrade your control systems with confidence.
Order your NKK Series LB16WKW015FJF waterproof illuminated pushbutton today and give your control panels the durable, reliable operation they deserve.
Frequently Asked Questions
Where can I buy NKK Switches LB16WKW015FJF?
You can click on the BUY or RFQ button to purchase LB16WKW015FJF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16WKW015FJF?
You can download the LB16WKW015FJF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16WKW015FJF?
NKK Switches
