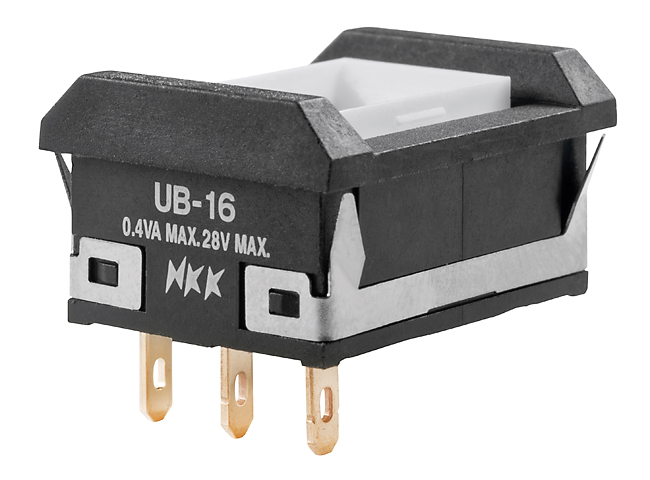

NKK Switches UB16NBKG01N Illuminated Pushbutton Switch
A low-profile illuminated pushbutton switch designed for PC board mounting and soldering applications. This switch features a compact design suitable for space-constrained panels and provides visual illumination for easy operation.
NKK Switches UB16NBKG01N Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole SPST
- Mounting Type: PCB Mounting
- Cap Type & Colors: Square Cap, Red, Green, White, Black, Amber, Blue
- LED Colors & Specifications: Bright LEDs in Red, Amber, Green, White, Blue with Forward Voltage 1.85V to 3.2V and Peak Current 20-30mA
- Electrical Capacity: 5A @ 125/250V AC or 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations min.
- Operating Temperature Range: -25°C to +50°C for illuminated models
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Dimensions: Compact size suitable for panel thickness 0.039” to 0.126”
Buy the Buy NKK UB16NBKG01N Illuminated Pushbutton Switch Part Number Online
Order the NKK Series UB illuminated pushbutton switch online now for versatile panel mounting. Its compact design and bright LED illumination ensure easy operation in tight spaces. Ideal for industrial control and automation systems, this switch offers long-lasting durability with a mechanical life of over a million cycles. Compatible with a range of panel thicknesses, it combines reliability, safety, and ease of installation, making it perfect for demanding applications requiring visual indicators and responsive actuation. Purchase today for quality and performance.
Get NKK Series UB low-profile illuminated pushbutton switch today—built for reliable operation in space-constrained environments.
Frequently Asked Questions
Where can I buy NKK Switches UB16NBKG01N?
You can click on the BUY or RFQ button to purchase UB16NBKG01N from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16NBKG01N?
You can download the UB16NBKG01N datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16NBKG01N?
NKK Switches
