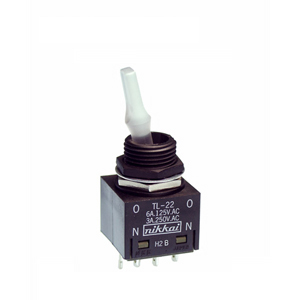

NKK Switches TL22DNAW016G Illuminated Toggle Switch
This standard size illuminated toggle switch is designed for panel mounting, providing reliable on/off control with integrated LED illumination for easy visibility. It features a durable polycarbonate housing and a glass fiber reinforced polyamide base with high-insulation barriers to prevent crossover. The switch offers a comprehensive range of electrical ratings, including 6A at 125V AC, 3A at 250V AC, and 6A at 12V DC, sustainable for industrial control applications. Optional hardware enhances mounting stability, and its sealed design ensures protection against contaminants. Suitable for various automation and control systems, the switch supports multiple LED colors, toggle lengths, and circuit configurations, making it versatile for industrial settings.
NKK Switches TL22DNAW016G Illuminated Toggle Switch Specifications:
- Electrical Capacity: 6A at 125V AC, 3A at 250V AC, 6A at 12V DC
- Contact Resistance: 10 milliohms maximum for silver contacts; 20 milliohms maximum for gold contacts
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts and case for 1 minute
- Electrical Life: 50,000 operations minimum for silver contacts; 50,000 operations minimum for gold contacts
- Operating Temperature Range: -55°C to +85°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration
- Mounting Torque: 1.9N for 17.5mm toggle, 2.5N for 11.0mm toggle
- Sealing: Panel seal with optional exterior o-ring conforming to IP65
- Housing Material: Polycarbonate
- Base Material: Glass fiber reinforced polyamide
- Toggle Material: Diallyl phthalate (UL94V-0)
- LED Colors: Red, Amber, Green, White, Blue (Bright and Super Bright options)
- Toggle Lengths: 17.5mm and 11.0mm versions
- Terminals: Solder lug and optional hardware accessories
