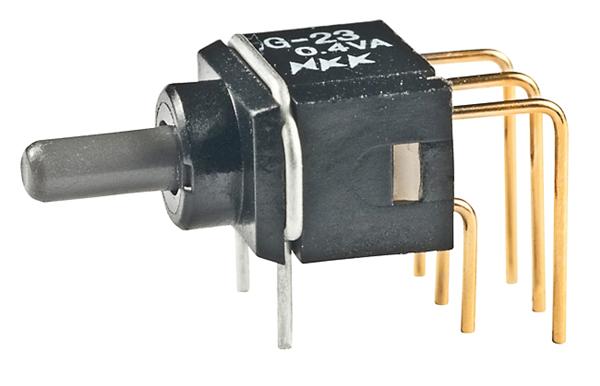

NKK Switches G23AH Double Pole Toggle Switch
The G23AH is a double pole, double throw DPDT toggle switch featuring ON-OFF-ON positions, ideal for controlling two circuits either independently or simultaneously. Its sealed, ultra-miniature body ensures contact protection against contaminants and simplifies automated soldering and cleaning processes. Crafted with high-quality phosphor bronze contacts with gold plating, it provides reliable electrical performance with a mechanical life of at least 50,000 operations. Suitable for low-voltage, logic-level circuits, it offers stable, positive toggle action and compact dimensions for high-density mounting in various electronic and industrial applications.
NKK Switches G23AH Double Pole Toggle Switch Specifications:
- Poles & Circuits: Double Pole, Double Throw (DPDT)
- Actuator Type: On-Off-On
- Terminal Type: PC Terminals
- Switch Size: 0.100" x 0.100" (2.54mm x 2.54mm)
- Dimensions: Length varies with model, typical support/support pins at location 1 and 3 for single pole models
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 500 megaohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute minimum
- Mechanical Life: Minimum 50,000 operations
- Electrical Life: Minimum 50,000 operations
- Operating Temperature Range: -25°C to +85°C
- Humidity Resistance: 90-95% RH for 96 hours @ 40°C
- Vibration Resistance: 10-55Hz with 1.5mm amplitude
- Shock Resistance: 50G acceleration in all directions
- Materials: Phosphor bronze contacts, glass fiber reinforced polyamide case and actuator, Nitrile butadiene rubber sealing ring
- Standards & Certifications: Not UL or CSA certified, suitable for logic-level low-voltage applications
