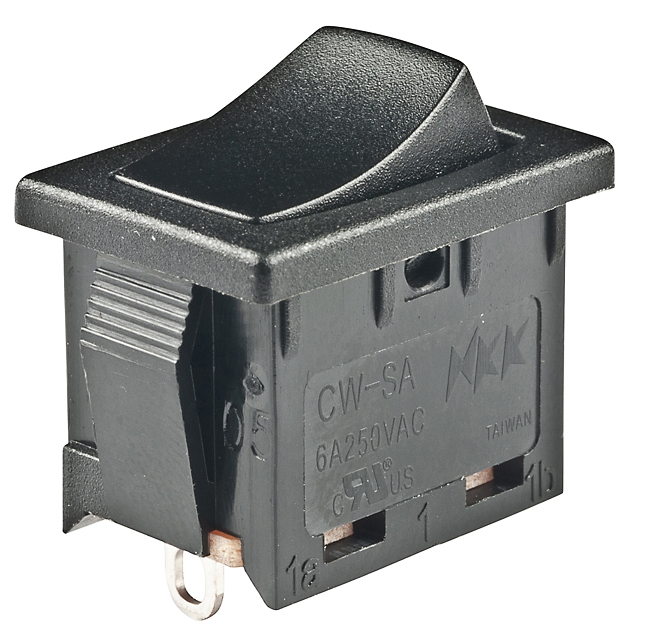

NKK Switches CWSA12AANS Miniature Power Rocker Switch
This miniature rocker switch offers reliable on/off control, featuring snap-in mounting for easy installation. Constructed with durable polycarbonate and polyamide materials, it supports resistive loads up to 6A at 250V AC. Suitable for electronic projects, machinery, and control panels, this switch ensures stable contact operation and high insulation resistance. It has a mechanical life of 30,000 operations, dielectric strength of 1,500V AC, and an operating temperature range of -10°C to +70°C. Its compact design makes it ideal for space-constrained environments demanding dependable switching performance.
NKK Switches CWSA12AANS Miniature Power Rocker Switch Specifications:
- Power Level: 6A @ 250V AC (Resistive Load)
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC minimum between contacts for 1 minute
- Mechanical Life: 30,000 operations minimum
- Electrical Life: 10,000 operations with Resistive Load & 6,000 with Inductive Load
- Nominal Operating Force: 2.50N
- Operating Temperature Range: -10°C to +70°C
- Housing Material: Polyamide
- Contact Material: Silver alloy
- Rocker Material: Polycarbonate
- Dimensions: Suitable for panel thickness 0.030” to 0.079” (0.75mm to 2.0mm)
- Mounting: Snap-in
- Terminal Type: Solder lug
- Standards & Certifications: UL Recognized, CSA Certified
Buy the NKK Series CW CWSA12AANS: Miniature Power Rocker Switch
Purchase the NKK Series CW CWSA12AANS miniature rocker switch online today to ensure your electronic assemblies are equipped with a high-reliability, space-saving control component. Designed for snap-in mounting, this switch supports resistive loads up to 6A at 250V AC, making it ideal for control panels and machinery. Its durable polycarbonate and polyamide construction guarantees long-lasting performance with a mechanical life of 30,000 operations. Secure your electronic solutions now with this compact, high-quality rocker switch, perfect for various industrial and electronic applications.
Order your NKK Series CW CWSA12AANS miniature rocker switch today and give your electronic projects reliable switching performance.
Frequently Asked Questions
Where can I buy NKK Switches CWSA12AANS?
You can click on the BUY or RFQ button to purchase CWSA12AANS from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CWSA12AANS?
You can download the CWSA12AANS datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CWSA12AANS?
NKK Switches
