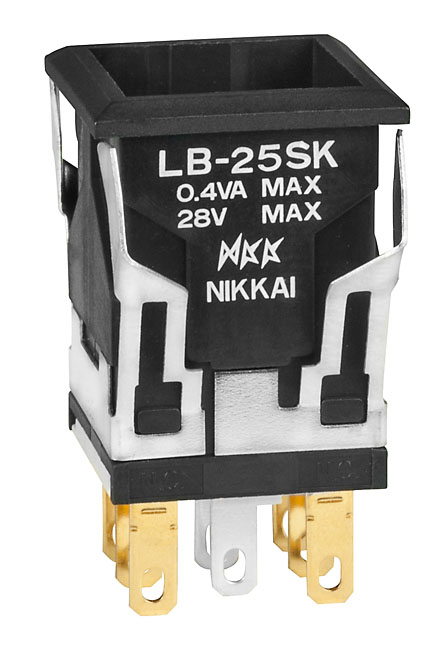

NKK Switches LB25SKW01 Standard Pushbutton Switch
This is a standard-sized, illuminated pushbutton switch designed for easy installation with a snap-in mounting mechanism. It features an illuminated indicator to provide visual status indication, making it suitable for various control and automation applications.
NKK Switches LB25SKW01 Standard Pushbutton Switch Specifications:
- Poles & Circuits: SPDT (ON-ON)
- Housing Colors: Black
- Contact Material: Silver alloy
- Rated Electrical Capacity: 3A at 125V AC & 250V AC, 0.4VA @ 28V AC/DC
- Lamp Type: LED, Neon, Incandescent
- LED Colors: Red, Amber, Green, Blue, White
- LED Forward Voltage: 1.9V to 3.6V depending on color
- LED Forward Peak Current: 20mA to 30mA
- Operating Temperature Range: -25°C to +50°C for illuminated models, -25°C to +70°C for nonilluminated
- Physical Dimensions: Square shape, 18.0 mm x 18.0 mm
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total travel 3.0mm
- Materials: Polycarbonate lens, GFR Polyamide base, stainless steel spring
- Mounting: Snap-in with clips, panel thickness from 1.0mm to 4.0mm
- Ingress Protection: Panel Sealed IP65
Buy the Buy NKK Switches Standard Size Pushbutton Part Number LB25SKW01 Online
Purchase NKK Switches LB25SKW01 today for a reliable, illuminated pushbutton with snap-in mounting. Designed for control and automation, it offers bright surface illumination, various LED color options, and durable construction. Ideal for panel-mounted applications requiring visual status indication and easy installation for industrial, commercial, or automation projects. Experience long electrical and mechanical life, IP65 sealing for environmental protection, and a broad temperature range for versatile use in demanding environments. Order now for prompt delivery of a quality control component.
Get NKK Switches LB25SKW01 today—built for bright illumination and long-lasting durability in control systems.
Frequently Asked Questions
Where can I buy NKK Switches LB25SKW01?
You can click on the BUY or RFQ button to purchase LB25SKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25SKW01?
You can download the LB25SKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25SKW01?
NKK Switches
