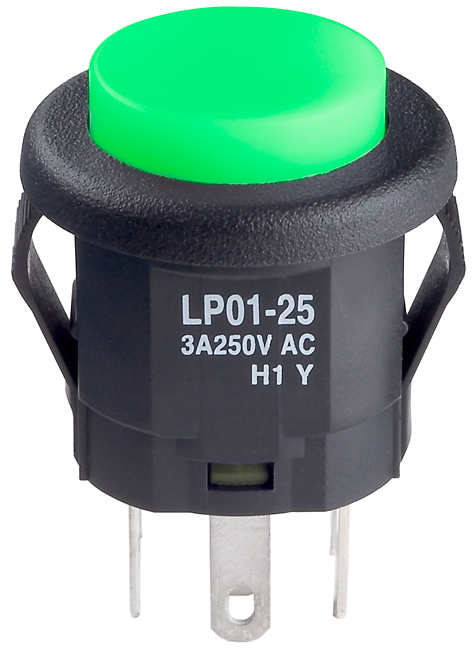

NKK Switches LP0125CMKW015FB Illuminated Pushbutton
This illuminated pushbutton switch offers reliable panel mounting with a short body design, perfect for control panels and interfaces. Constructed with durable polycarbonate and an environmentally friendly, RoHS-compliant design, it features crisp snap-action contacts, LED illumination options in red, green, or amber, and versatile mounting options including bushing and snap-in styles. Rated for 3A at 125V AC or 30V DC, it provides excellent electrical performance, high durability, and tamper-resistant design, suitable for industrial and automation applications ensuring dependable operation and easy integration.
NKK Switches LP0125CMKW015FB Illuminated Pushbutton Specifications:
- Electrical Capacity: 3A @ 125V AC / 250V AC / 30V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 500,000 operations minimum
- Electrical Life: 50,000 operations at rated conditions
- Nominal Operating Force: 1.5N for single pole, 3.0N for double pole
- Total Travel: 0.118 inches (3.0mm)
- Actuator Material: Polycarbonate
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Base Material: Polyphenylene ether (UL94V-0)
- Lamp Terminals: Phosphor bronze with silver plating
- Operating Temperature Range: 10°C to +50°C
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock: 50G acceleration
- Mounting Torque: 0.8Nm
- Soldering: Manual soldering as per Profile A
- Certifications: UL94V-0, recognized UL (File No. E44145)
Buy the Buy NKK Switches Series LPO1 Short Body Pushbuttons Part Number LP0125CMKW015FB Online
Purchase your NKK Series LPO1 illuminated pushbutton today online and enhance your control panel with a reliable, durable, and easy-to-install switch. Featuring LED illumination in multiple colors, a compact short body design for saving space, and high electrical ratings up to 3A at 125V AC, this switch is ideal for industrial automation and user interfaces. Manufactured with environmentally friendly materials, it ensures compliance with RoHS directives. Experience seamless installation, excellent durability, and dependable operation—perfect for demanding environments and professional applications.
Order your NKK Series LPO1 short body illuminated pushbutton today and enjoy high reliability, durable operation, and easy panel mounting for your control projects.
Frequently Asked Questions
Where can I buy NKK Switches LP0125CMKW015FB?
You can click on the BUY or RFQ button to purchase LP0125CMKW015FB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LP0125CMKW015FB?
You can download the LP0125CMKW015FB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LP0125CMKW015FB?
NKK Switches
