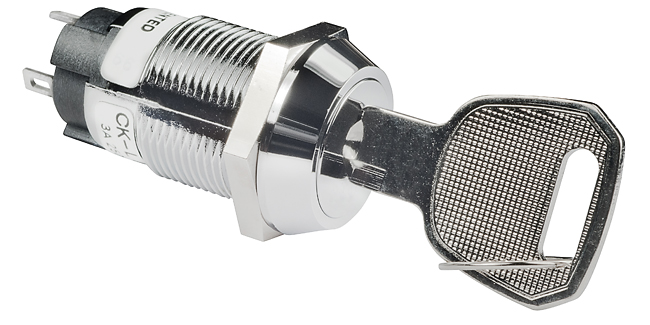

NKK Switches CKL12BFW01005 Security Lock
High security key lock featuring solder lug connection, designed for enhanced safety and reliable electrical attachment. It withstands 3A at 250V AC, with high dielectric strength of 1,500V between contacts and case. The lock uses durable materials like brass with nickel or chrome plating, glass fiber reinforced PBT, and zinc alloy. It offers manual soldering, mounting torque of 0.04-0.08 mNm depending on model, and can handle operating temperatures from -25°C to +70°C. Suitable for industrial security applications requiring ruggedness and high electrical performance.
NKK Switches CKL12BFW01005 Security Lock Specifications:
- Electrical Capacity: 3A @ 250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC minimum between contacts and case for 1 minute
- Operating Temperature Range: -25°C to +70°C
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude of 1.5mm or 0.7mm
- Shock: 50G for CKM, 30G for CKL
- Mounting Torque: 0.04-0.08 mNm depending on model
- Soldering: Manual soldering profile A, with specific temperature/time
- Housing Material: Brass with nickel or chrome plating, glass fiber reinforced PBT, zinc alloy
- Terminals: Solder lug
- Bushing Size: 16mm for CKM, 19mm for CKL
- Environmental Resistance: Withstands up to 15kV ESD for CKM
- Mechanical Life: 30,000 cycles
Buy the NKK CKL12BFW01005 – Reliable Industrial Security Lock for Industrial Applications
Purchase the high security key lock online today for industrial safety and reliable electrical connection. This durable lock features solder lug terminals capable of handling 3A at 250V AC, with exceptional insulation resistance and dielectric strength. Crafted from robust materials like brass with nickel plating and glass fiber reinforced PBT, it is designed for demanding environments. Easy to install with specified mounting torque, it withstands extreme temperatures and vibrations. Ensure your safety systems are protected by ordering this high-performance lock online now and experience quality that lasts.
Get NKK CKL12BFW01005 today—built for industrial security and long-lasting durability.
Frequently Asked Questions
Where can I buy NKK Switches CKL12BFW01005?
You can click on the BUY or RFQ button to purchase CKL12BFW01005 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CKL12BFW01005?
You can download the CKL12BFW01005 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CKL12BFW01005?
NKK Switches
