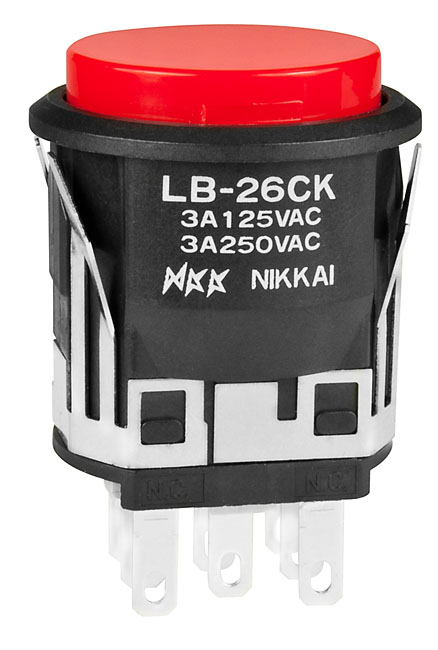

NKK Switches LB26CKW011CC Illuminated Pushbutton
The illuminated pushbutton switch features snap-in mounting and bright LED illumination. Suitable for industrial control panels, it offers reliable electrical ratings of 3A at 125/250V AC and durability with over 1 million operations. Made from high-quality polycarbonate and stainless steel, it is designed for easy installation with quick connect terminals. Its panel sealed design meets IP65 standards, providing protection against dust and water. This compact switch is ideal for automation systems, machinery interfaces, and control solutions requiring bright, visible indicators and long service life.
NKK Switches LB26CKW011CC Illuminated Pushbutton Specifications:
- Electrical Capacity: 3A @ 125V AC or 250V AC, 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 4.0 N
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total Travel 3.0mm
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contact Material: Silver alloy or copper with gold plating
- Seal: Panel seal meets IP65 standards, with rubber seal option
- Operating Temperature Range: -25°C to +50°C for illuminated versions, -25°C to +70°C for non-illuminated
- Mounting: Snap-in clips for panel thicknesses 1.0mm to 4.0mm
- Standards & Certification: UL recognized, CSA certified, recognized for 3A @ 125/250V AC
- Dimensions: Compact design with panel cutout approximately 16.2mm x 16.2mm
Buy the NKK LB26CKW011CC – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK LB26CKW011CC illuminated pushbutton switch online today to enhance your industrial control solutions. Featuring bright LED illumination, easy snap-in mounting, and IP65 protection, this switch offers long-lasting performance with a mechanical life exceeding 1 million operations. Its compact size and durable materials make it suitable for machinery, automation panels, and control interfaces demanding high visibility and reliability. Secure your inventory now and improve operational efficiency with a trusted,certified control component built for demanding environments.
Buy NKK LB26CKW011CC now and experience unmatched reliability and bright LED indicators for industrial control and automation systems.
Frequently Asked Questions
Where can I buy NKK Switches LB26CKW011CC?
You can click on the BUY or RFQ button to purchase LB26CKW011CC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB26CKW011CC?
You can download the LB26CKW011CC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB26CKW011CC?
NKK Switches
