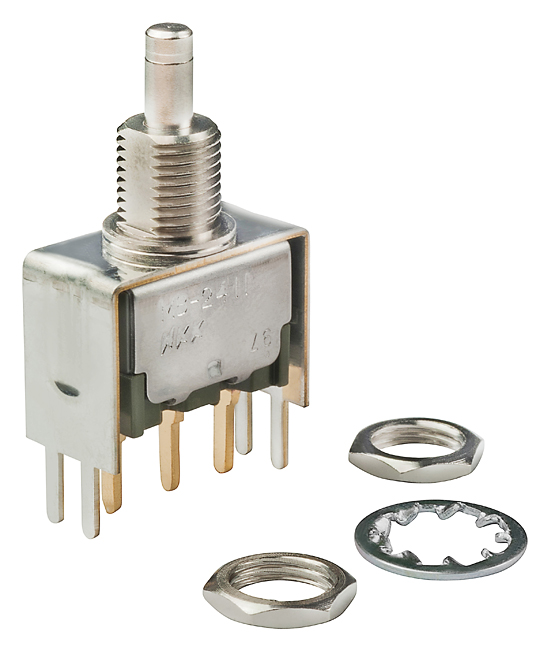

NKK Switches MB2411E1G13 Miniature Pushbutton Switch
This miniature snap-action pushbutton switch is engineered for momentary operation, ideal for electronic applications requiring reliable and compact switching components. Featuring diverse mounting options, such as PC and bracket mountings with different terminal configurations, it supports various circuit ratings up to 3A at 125V AC and 0.4VA at 28V AC/DC. Equipped with features like smooth bushings, keyways, and optional locking rings, it is suitable for applications demanding durability and versatility in tight spaces. The device’s contact materials include silver and gold over brass or copper, ensuring optimal electrical performance.
NKK Switches MB2411E1G13 Miniature Pushbutton Switch Specifications:
- Contact Material: Silver over Silver, Gold over Brass or Copper
- Power Rating: 3A @ 125V AC
- Logic Rating: 0.4VA max @ 28V AC/DC
- Bushing Size: 280" (7.1mm), 285" (7.24mm), 350" (8.9mm)
- Mounting: Straight PC, Reinforced or Standard Bracket, Right Angle PC, Vertical PC
- Terminal Types: Terminal with Terminal, Reinforced Bracket, Reverse Circuit
- Hardware Includes: 2 hex nuts and 1 lockwasher, optional locking ring
- Maximum Panel Thickness: 0.068” (1.74mm) with standard hardware, 0.134” (3.40mm) with additional hardware
- Pad Colors: Black, White, Red with glossy polyamide caps
- Plunger Options: With or without cap, no plunger selection required
- Mounting Holes: D Flat, Keyway, Threaded with D Flat, Threaded with Keyway
- Enclosure Material: Polyamide caps, Brass with Nickel Plating hardware
- Certifications: UL Recognized, CSA, cULus listed when marked
- Operating Range: Suitable for power and logic circuits, dual rating for power and logic applications
Buy the NKK MB2411E1 – Reliable Miniature Switch for Industrial Applications
Secure the NKK MB2411E1 miniature pushbutton switch today through our online store. Perfect for reliable, compact control in electronic devices, offering versatile mounting options and excellent contact materials. Designed for various circuit ratings, this switch ensures durability and high performance in demanding environments. Whether for power or logic circuits, this switch is essential for achieving dependable operation. Purchase now and enhance your electronic setups with a trusted component known for quality and versatility.
Buy NKK MB2411E1 now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches MB2411E1G13?
You can click on the BUY or RFQ button to purchase MB2411E1G13 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2411E1G13?
You can download the MB2411E1G13 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2411E1G13?
NKK Switches
