NKK Switches AB15BPFA Process Sealed Subminiature Pushbutton
Subminiature pushbutton switch designed for compact electronic applications, featuring reliable actuation and durable construction. The series employs an award-winning contact mechanism with smoother, positive detent actuation, increased contact stability, and unparalleled logic-level reliability. Its totally sealed body construction prevents contact contamination and facilitates automated soldering and cleaning processes. Suitable for logic-level circuits, it offers a compact design that saves space on PC boards and ensures long-lasting performance in low-voltage, low-current applications, making it ideal for electronic and manufacturing environments.
NKK Switches AB15BPFA Process Sealed Subminiature Pushbutton Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 2.55N
- Contact Timing: Nonshorting (break-before-make)
- Travel: Pretravel 0.028 inches (0.7mm); Overtravel 0.016 inches (0.4mm); Total Travel 0.043 inches (1.1mm)
- Plunger Material: Polyacetal
- Case Housing: Glass fiber reinforced polyamide
- Support Bracket: Not specified
- Support Terminals: Molded-in, epoxy sealed or ultrasonically welded terminals
- Environmental Range: Operating temperature -30°C to +85°C (-22°F to +185°F)
- Humidity: 90–95% for 96 hours @40°C
- Vibration: 10–55Hz with peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration
- Soldering: Wave and manual soldering, automated cleaning
- Certifications: Not UL or CSA recognized
- Materials: Contact - phosphor bronze, case - polyamide, plunger - polyacetal
- Support: Designed for low-voltage, logic-level applications, suitable for electronic systems and automation.

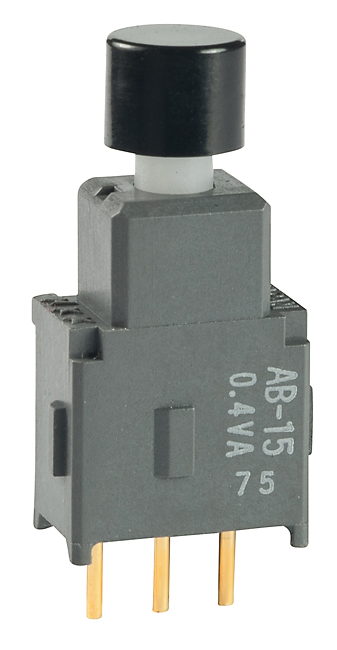

Buy the Buy NKK Switches Series AB Process Sealed Subminiature Pushbuttons Part Number AB15BPFA Online
Purchase the NKK Series AB process sealed subminiature pushbutton switch online today to benefit from its compact size, sealed enclosure, and high reliability. Ideal for logic-level circuits, it ensures precise actuation and long lifespan through a sealed contact mechanism that resists contamination. Whether for electronic devices, control panels, or manufacturing automation, this switch offers easy soldering, robust construction, and consistent performance to meet demanding industrial and electronic needs. Order now to enhance your project with proven quality and space-efficient design.
Buy NKK Switches AB15BPFA now and experience unmatched reliability, space-saving design, and excellent durability for electronic automation projects.
Frequently Asked Questions
Where can I buy NKK Switches AB15BPFA?
You can click on the BUY or RFQ button to purchase AB15BPFA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part AB15BPFA?
You can download the AB15BPFA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of AB15BPFA?
NKK Switches
