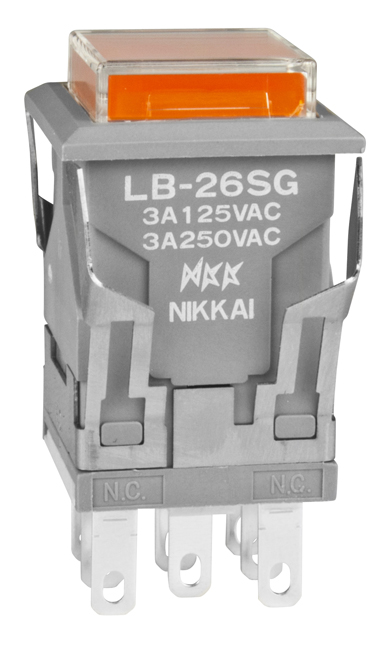

NKK Switches LB26SGW015DJD Illuminated Pushbutton
This standard size illuminated pushbutton switch features snap-in mounting, making it ideal for control panels and electronic applications. It provides reliable operation with integrated illumination, ensuring visibility and ease of use. The switch includes options for LED lighting with various colors and resists internal contaminants through epoxy sealing. Designed with durable materials such as polycarbonate and stainless steel, it supports a wide temperature range (-25°C to +50°C for illuminated models), and meets IP65 standards for panel sealing, making it suitable for demanding environments. It offers various contact configurations, including SPDT and DPDT, with robust terminal options such as solder lug and quick connect, ensuring long electrical life and dependable performance in automation and control systems.
NKK Switches LB26SGW015DJD Illuminated Pushbutton Specifications:
- Electrical Capacity (Resistive Load): 3A @ 125V AC or 3A @ 250V AC, 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms max. for silver, 100 milliohms max. for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for nonilluminated models
- Pretravel & Overtravel: 0.059” (1.5mm); Total Travel: 0.118” (3.0mm)
- Housing Material: Polycarbonate (UL94V-0), stainless steel clips
- Seal: IP65 compliant with panel sealing capabilities
- Contact Materials: Silver alloy or copper with gold plating
- Terminals: Solder lug and .110” quick connect terminals, epoxy sealed for contamination protection
- Certifications: UL Recognized, cULus, CSA certified upon order with marking, recognized at 3A @ 125/250V AC
- Environmental: Operation from -25°C to +50°C, humidity up to 95% for 96 hours at 40°C
