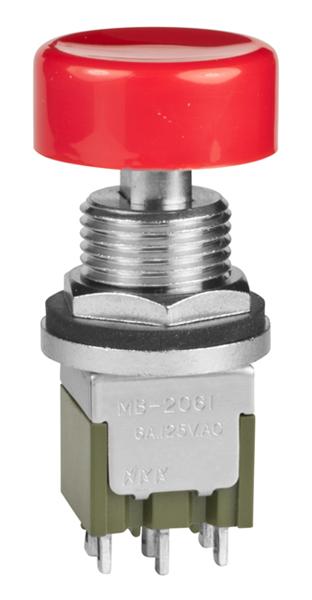

NKK Switches MB2061SB3W01EC Miniature Pushbutton Switch
This miniature pushbutton switch offers reliable performance with multiple circuit options, including SPDT and DPDT configurations. Designed with a 12.0mm threaded bushing with a keyway, it features silver contacts rated at 6A at 125V AC and 3A at 250V AC, suitable for industrial and electronic applications. The switch includes solder lug terminals, a durable plastic plunger, and optional splashproof options. Its compact size and versatile mounting options make it ideal for control panels, automation, and instrumentation where space is limited and reliable operation is critical.
NKK Switches MB2061SB3W01EC Miniature Pushbutton Switch Specifications:
- Poles & Circuits: SPDT, DPDT
- Contact Material: Silver over Silver
- Rating: 6A at 125V AC, 3A at 250V AC
- Bushing Diameter: 12.0mm (0.472") threaded with keyway
- Plunger Type: Plastic, for screw-on caps
- Terminal Style: Solder lug
- Panel Thickness: Max 0.217" (5.5mm)
- Cap Diameter: 8.0mm, 10.0mm, 13.2mm, 19.0mm options
- Cap Colors: Black, White, Red, Green, Blue, Gray
- Material: Polycarbonate for caps, Brass with chrome plating hardware
- Operating Life: 10,000 cycles (momentary), 30,000 cycles (alternate action)
- Mounting Style: Threaded bushings with optional splashproof boot
- Rating: Suitable for control panels, automation systems, instrumentation
Buy the NKK MB2061 U+2013 Reliable Control Switch for Industrial Applications
Purchase your NKK Series MB2061 miniature pushbutton switch online today to ensure high-quality, reliable control for your electronic and industrial projects. Featuring versatile circuit options, robust construction, and solder lug terminals, this compact switch excels in space-constrained environments. Its durable plastic plunger and optional splashproof boot provide additional protection and longevity. Perfect for automation, instrumentation, and control panel applications, this switch guarantees dependable performance and easy installation. Get yours now and enhance your systems' efficiency and reliability.
Order your NKK Series MB2061 mini pushbutton switch today and equip your control panels with a dependable and versatile switch solution.
