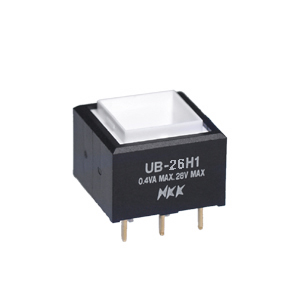

NKK Switches UB26SKG035C Low Profile Illuminated Pushbutton
A low-profile, illuminated pushbutton switch designed for PC mount or solder connections. Ideal for compact electronic applications requiring easy operation and visibility.
NKK Switches UB26SKG035C Low Profile Illuminated Pushbutton Specifications:
- Pole: Single Pole
- Circuit: SPDT
- Mounting: PCB Mount / Solder Lug
- LED Colors: Red, Amber, Green, White, Blue
- LED Voltage: 125/250V AC or 28V DC
- LED Forward Voltage: 1.85V (Red), 2.0V (Amber), 2.1V (Green), 3.2V (White, Blue)
- Maximum Forward Current: 20-30 mA
- Switch Rating: 5A at 125/250V AC, 0.4VA max at 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 Megaohms minimum at 500V DC
- Dielectric Strength: 1,000V AC contact to contact, 1,500V AC contact to case for 1 minute
- Mechanical Life: 1,000,000 operations
- Temperature Range: -25°C to +50°C (Illuminated), -20°C to +70°C (Non-illuminated)
- Environmental: 95% humidity for 96 hours at 40°C, Shock ±50G
- Housing Material: UL94V-0 flame retardant polyamide
- Cap Material: Polycarbonate, Glossy Finish
- Snap-in Mounting Suitable for panels 0.039” to 0.126” thick
- Dimensions: Approximately 15.24 mm (0.6 inch) width, 20 mm (0.79 inch) height
- Certification: UL Recognized, CSA Certified when ordered with marking
Buy the Buy NKK Switches UB26SKG035C Part Number UB26SKG035C Online
Order the NKK low-profile illuminated pushbutton switch UB26SKG035C online today. Designed for tight spaces with bright LEDs, it offers reliable contact performance, high durability, and simple PCB or solder mounting. Perfect for advanced electronic devices requiring clear visibility, quick operation, and long-lasting service life. Its high-quality UL and CSA certifications ensure safety and compliance, making it an excellent choice for industrial, commercial, and consumer applications. Enhance your system's control interface with this compact, durable switch.
Get NKK Switches UB26SKG035C today—built for precision, durability, and ideal for compact electronic equipment where visibility and reliability are essential.
Frequently Asked Questions
Where can I buy NKK Switches UB26SKG035C?
You can click on the BUY or RFQ button to purchase UB26SKG035C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB26SKG035C?
You can download the UB26SKG035C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB26SKG035C?
NKK Switches
