NKK Switches LP0115CCKW015CB Illuminated Pushbutton Switch
A panel-mounted illuminated pushbutton switch designed for easy operation and visual indication. Suitable for control panels and industrial equipment, providing reliable actuation with integrated lighting for visibility.
NKK Switches LP0115CCKW015CB Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC or 3A @ 250V AC or 3A @ 30V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC minimum between contacts, 1500V AC minimum between contacts and case
- Mechanical Life: 500,000 operations minimum
- Electrical Life: 50,000 operations (3A @ 125V/250V AC & 3A @ 30V DC), 100,000 operations (1A @ 125V/250V AC & 1A @ 30V DC)
- Nominal Operating Force: 1.5N for SPDT, 3.0N for DPDT
- Contact Timing: Nonshorting (break-before-make)
- Travel: Total travel 0.118 inches (3.0 mm)
- Actuator Material: Polycarbonate
- Housing Material: UL94V-0 Polycarbonate
- Base Material: Glass fiber reinforced polyamide (bushing mount), Polyphenylene ether (snap-in mount)
- Lamp Terminals: Phosphor bronze with silver plating
- Operating Temperature Range: -25°C to +70°C (nonilluminated), 10°C to +50°C (illuminated)
- Humidity: 90-95% for 240 hours at 40°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration in 6 directions
- Mounting Torque: 0.8Nm
- Soldering: Manual soldering as per recommended profiles
- Cleaning: Locally with alcohol-based solutions
- Standard & Certifications: UL Recognized, CSA Certified, UL94V-0 flame rating

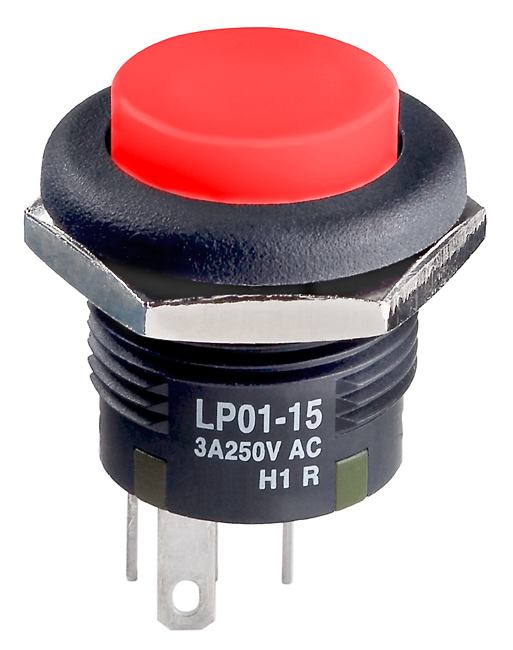

Buy the NKK Series LPO1 Illuminated Pushbutton: LP0115CCKW015CB
