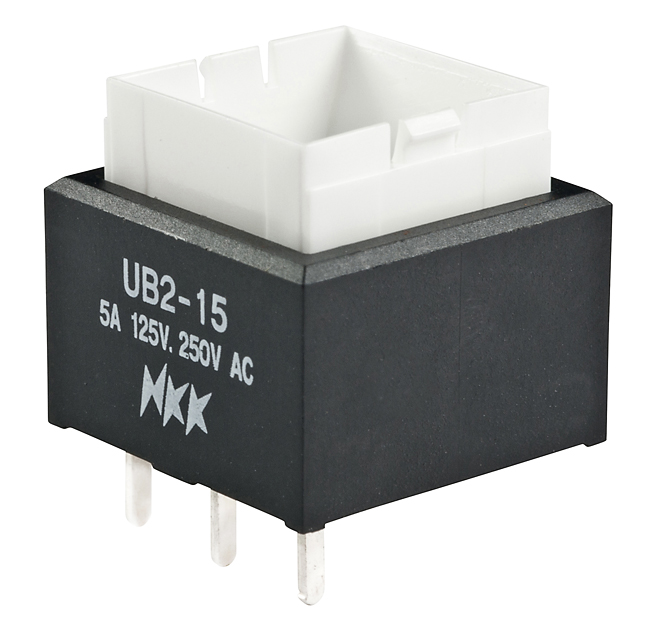

NKK Switches UB215SKW03N Low Profile Pushbutton
A low-profile, illuminated pushbutton switch designed for PC board mounting and soldering. Suitable for panel applications where space is limited, providing reliable button actuation with built-in illumination for visibility.
NKK Switches UB215SKW03N Low Profile Pushbutton Specifications:
- Electrical Capacity (Resistive Load): 5A @ 125/250V AC or 5A @ 30V DC
- Power Level (silver): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute, 1,500V AC minimum between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary; 200,000 for alternate action
- Electrical Life: 200,000 operations minimum for gold, 10,000 for silver
- Nominal Operating Force: Single Pole 1.90N; Double Pole 2.55N
- Travel: Pretravel 0.067 in (1.7mm); Overtravel 0.024 in (0.6mm); Total 0.091 in (2.3mm)
- Housing/Bezel Material: Glass fiber reinforced polyamide (UL94V-0)
- Cap Material: Stainless steel
- Illumination: Built-in LED (super bright available), colors include White, Red, Amber, Green
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for nonilluminated
- Vibration: 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm, 2 hours in 3 directions
- Shock: 50G acceleration, tested in 6 directions with 5 shocks each
- Mounting: PC board mounting, snap-in design, panel thickness 0.039” to 0.126” (1.0mm to 3.2mm)
