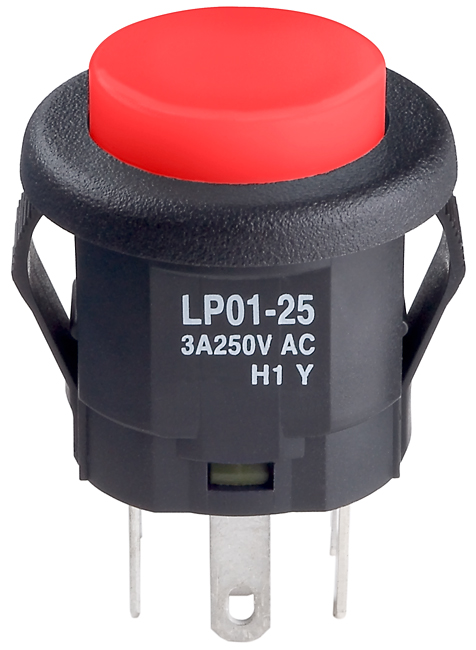

NKK Switches LP0125CMKW015CB Illuminated Pushbutton
This illuminated short-body pushbutton is designed for panel mounting, offering reliable operation with integrated LED lighting in red, green, or amber. Its compact size of just 0.551 inches (14.0 mm) saves space behind panels, making it ideal for control panels and automation systems. Constructed with environmentally friendly, RoHS-compliant components, it features a snap-action contact mechanism with a clear circuit status. The switch accommodates various mounting types, including bushing and snap-in, with secure tamper-resistant caps and multiple LED color options for enhanced visibility and safety.
NKK Switches LP0125CMKW015CB Illuminated Pushbutton Specifications:
- Electrical Capacity (Resistive Load): 3A @ 125V AC or 3A @ 250V AC or 3A @ 30V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 500,000 operations minimum
- Electrical Life: 50,000 operations at rated load; 100,000 at 1A
- Nominal Operating Force: 1.5N (single pole), 3.0N (double pole)
- Total Travel: 0.118 inches (3.0mm)
- Materials & Finishes: Actuator is polycarbonate; housing in black polyamide (UL94V-0); contact material is phosphor bronze with silver plating; lamp terminals for LED illumination
- Operating Temperature Range: 10°C to +50°C for illuminated versions, 25°C to +70°C for non-illuminated
- Humidity: 90-95% RH for 240 hours at 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm for 1 minute
- Shock: 50G acceleration in 6 directions with 5 shocks each
- Mounting: Bushing or snap-in, with mounting torque of 0.8Nm
- Soldering: Manual profile; hand clean with alcohol-based solutions
- Standards and Certifications: UL94V-0 housing; recognized under File No. E44145; UL recognized when ordered with marking, add /U or /CUL
Buy the NKK Series LPO1 Short Body Pushbuttons: LP0125CMKW015CB
Order the NKK Series LPO1 short-body illuminated pushbutton online today and enhance your control panels with this space-saving, reliable component featuring LED lighting in multiple color options. The switch’s snap-action mechanism ensures crisp actuation and long-lasting operation, making it perfect for automation and machinery control. Its environmentally friendly RoHS-compliant design allows lead-free soldering, while its versatile mounting options facilitate easy installation. Get this high-quality switch to upgrade your system’s visibility and safety today, backed by NKK’s reputation for precision engineering and durability.
Buy NKK Series LPO1 short-body pushbutton with integrated LED illumination now and experience unmatched reliability and performance.
