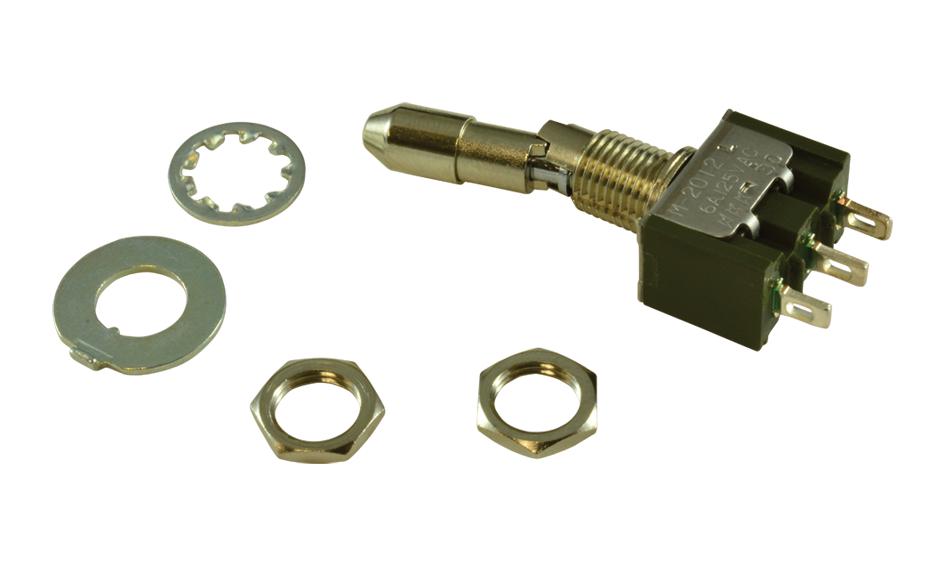

NKK Switches M2012LL1W01 Miniature Toggle Switch
The M2012LL1W01 is a robust SPDT non-illuminated miniature toggle switch designed for industrial panels. Featuring a durable stainless steel frame, tin-plated brass support bracket, and a 5.1mm locking lever, it offers excellent contact protection through anti-rotation and anti-jamming features. The switch has epoxy-sealed terminals to prevent contamination and supports IP67 sealing for harsh environments. Rated for at least 25,000 electrical cycles, it operates from -30°C to 85°C, suitable for demanding industrial automation, control panels, and machinery applications requiring reliable, high-quality switching.
NKK Switches M2012LL1W01 Miniature Toggle Switch Specifications:
- Switch Type: SPDT
- Operation: ON-None-ON
- Terminals: Solder Lug, epoxy sealed
- Bushing: 7.4mm nickel-plated brass with keyway
- Material: Stainless steel frame, brass support bracket
- Operating Temp Range: -30°C to +85°C
- Environmental rating: IP67
- Electrical Life: Minimum 25,000 operations
- Insulation Resistance: 1,000 megohms @ 500V DC
- Dielectric Strength: 1,000V AC for 1 min
- Contact Resistance: 10 milliohms (silver), 20 milliohms (gold)
- Vibration Resistance: 10-55Hz, amplitude 1.5mm
- Shock Resistance: 50G
- Flammability: UL94V-0
- Operating Force: Not specified
- Mounting: Threaded bushing with high torque strength
- Enclosure Material: Polycarbonate (Cap options available)
Buy the NKK 2012LL1W01 – Reliable Industrial Toggle Switch for Automation Applications
Enhance your control panels with the NKK Miniature Toggle Switch, offering IP67 sealing, epoxy-sealed terminals, and a stainless steel frame for rigorous industrial use. This SPDT switch features a locking lever, reliable contact operation for over 25,000 cycles, and operates in a temperature range of -30°C to +85°C. Its rugged design ensures optimal performance in harsh environments, making it an ideal choice for automation, machinery, and industrial control systems. Purchase online now for dependable, long-lasting switching performance.
Order your NKK Series 2012LL1W01 toggle switch today and equip your industrial projects with durable, high-performance switching solutions.
Frequently Asked Questions
Where can I buy NKK Switches M2012LL1W01?
You can click on the BUY or RFQ button to purchase M2012LL1W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012LL1W01?
You can download the M2012LL1W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012LL1W01?
NKK Switches
