NKK Switches YB02VA004 Panel Indicator
The IP65 Panel Seal Indicator with Legend is a splashproof device designed for industrial or control panel applications. It features a clear polycarbonate lens with a laser-etched legend in Helvetica Bold, black color, and a white thermoplastic elastomer seal. The indicator utilizes a bright LED without an internal resistor, requiring external ballast resistors for voltage exceeding 25°C. Made with UL94V-0 rated materials, it offers robust environmental protection, including sealing to IP65 standards, vibration, shock resistance, and suitable for operating temperatures from -25°C to +50°C. Easy mounting and compliant with industry standards ensure durable performance.
NKK Switches YB02VA004 Panel Indicator Specifications:
- Materials & Finishes: Housing and bezel made of glass fiber reinforced polyamide (UL94V-0), base of similar material, phosphor bronze with tin plating for lamp terminals
- Environmental Data: Operating temperature -25°C to +50°C, humidity 90-95% for 96 hours @ 40°C, vibration 10-55Hz, shock 50G, sealing IP65 (IEC60529), RoHS compliant
- Electrical Specifications: Bright LED with a maximum forward current of 40mA, typical 26mA, forward voltage 19V, reverse voltage unspecified, external ballast resistor required for voltage over rated, soldering temperature 390°C for 4 seconds
- Physical Dimensions: Panel cutout fitting, dimensions in mm/inch, lens material polycarbonate, seal/diffuser made of thermoplastic elastomer, glossy finish, round cap design
- Standards & Certifications: UL94V-0 flammability rating, IEC sealing standards IP65

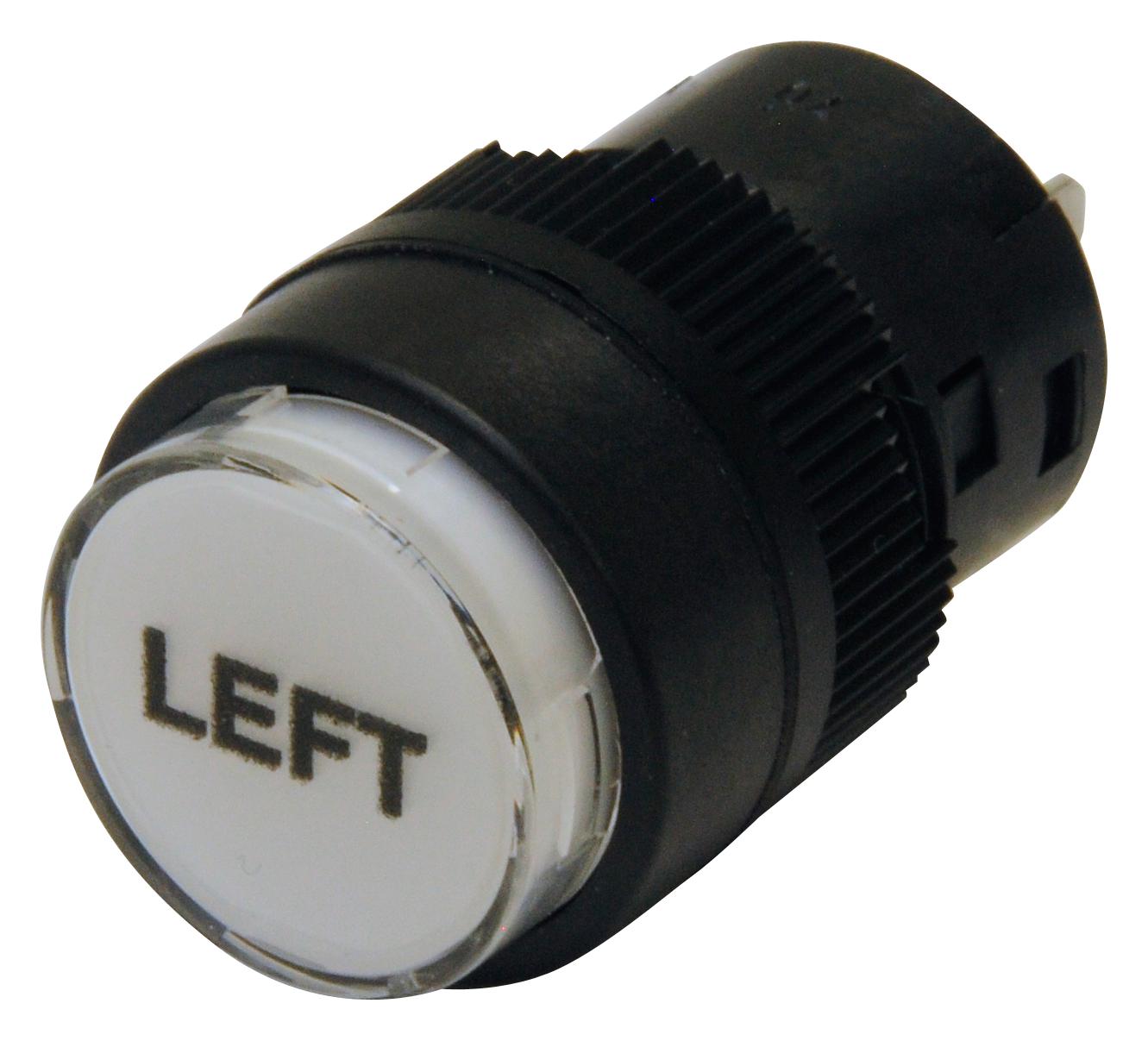

Buy the NKKS Switch Series Indicator: IP65 Panel Seal with Legend YBO2VA004
Order the NKKS Switch YBO2VA004 Panel Indicator online for quick installation in control panels. Its splashproof design, durable materials, and clear legend make it ideal for industrial settings. Perfect for applications requiring IP65 environment sealing, vibration, and shock resistance, this indicator ensures reliable operation in harsh conditions. Easy to mount and compliant with industry safety standards, it provides a consistent bright LED indication. Purchase now for a dependable, long-lasting solution that enhances safety and operational efficiency.
Get NKKS Switch YBO2VA004 today—built for durability, splashproof protection, and reliable indication in industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches YB02VA004?
You can click on the BUY or RFQ button to purchase YB02VA004 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB02VA004?
You can download the YB02VA004 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB02VA004?
NKK Switches
