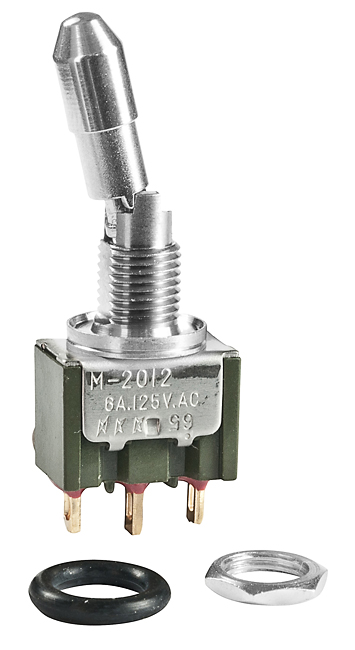

NKK Switches M2012LL3A01 Miniature Toggle Switch
This miniature toggle switch offers multiple positions for controlling various circuit functions, featuring high insulation barriers, epoxy sealed terminals, and durable brass with chrome finish. Ideal for electronic applications requiring reliable switching, it supports resistive loads up to 6A @ 125V AC and 3A @ 250V AC, with gold or silver contact ratings. Designed with antirotation and anti-jamming features, the switch ensures long mechanical and electrical life, and is mounted via bushing with optional splashproof features for robust industrial use.
NKK Switches M2012LL3A01 Miniature Toggle Switch Specifications:
- Contact Materials & Ratings: Silver over Silver Power Level 6A @ 125V AC & 3A @ 250V AC; Gold over Brass or Copper Logic Level 6A @ 125V AC & 3A @ 250V AC
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V AC/DC maximum
- Contact Resistance: 10 milliohms maximum for silver, 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: Minimum 100,000 operations, 50,000 for flat, locking, splashproof models
- Electrical Life: 25,000 operations for silver, 50,000 for gold
- Operating Temp Range: -30°C to +85°C
- Vibration Resistance: 10-55Hz, amplitude 1.5mm for 2 hours
- Shock Resistance: 50G for 11ms in 6 directions
- Mounting: Bushing with torque 3.0Nm for large, 1.5Nm for others
- Sealing: Splashproof options meet IP67 standards
- Material: Brass with chrome plating, polycarbonate case, epoxy sealed terminals
- Standards & Certifications: UL94V-0 flammability rating, UL & CSA recognized with order
Buy the NKK M2012LL3A01 – Reliable Toggle Switch for Industrial Applications
Purchase the NKK miniature toggle switch online today—engineered for high reliability and long-lasting performance. Its robust construction with epoxy sealed terminals and durable brass with chrome finish ensures dependable switching in industrial and electronic applications. Supports resistive loads up to 6A at 125V AC and 3A at 250V AC, with options for splashproof sealing meeting IP67 standards. Easy to install with bushing mounting, it features multiple positions for versatile circuit control. Invest in top-quality switching technology today!
Get NKK M2012LL3A01 today—designed for durability and precision in electronic circuit control.
