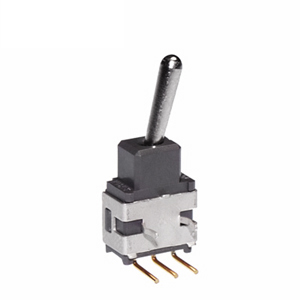

NKK Switches A19AH Toggle Switch
Subminiature toggle switch designed for precision electronic applications. Compact and reliable, suitable for various control and switching tasks. Features sealed body construction to prevent contact contamination, ensuring long-term stability and reliability. Ideal for logic-level circuits with low-voltage, low-current operation, offering smooth actuation, increased contact stability, and enhanced logic-level reliability. The switch supports automated soldering and cleaning processes, making it suitable for space-constrained electronic assemblies used in industrial, instrumentation, and control systems. It complies with environmental standards and provides durable performance in demanding environments.
NKK Switches A19AH Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum for On-None-On & On-Off-On
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for .394” toggles, 2.73N (momentary); 1.84N (maintained) for others
- Contact Timing: Nonshorting (break-before-make), Toggle angle of throw: 26°
- Materials & Finishes: Toggle - Glass fiber reinforced polyamide; Case Housing - Nickel plated brass; Support Bracket - Glass fiber reinforced polyamide; Movable Contact - Tin plated phosphor bronze; Stationary Contacts - Phosphor bronze with gold plating; Terminals - Brass with gold plating
- Environmental Data: Operating temperature -30°C through +85°C; Humidity - 90-95% for 240 hours @ 40°C; Vibration - 10-55Hz with peak-to-peak amplitude of 1.5mm; Shock - 50G acceleration
