NKK Switches M2012LL3G01 Miniature Toggle Switch
This miniature toggle switch offers reliable and precise control ideal for electronic applications. Its compact design enables effective integration in space-limited projects, providing stable operation across multiple circuit configurations. Featuring robust construction with gold or silver contacts, it supports resistive loads up to 6A at 125V AC and 3A at 250V AC, suitable for both power and logic circuits. The switch includes epoxy sealed terminals for durability against contaminants, with an anti-rotation and anti-jamming design for extended mechanical and electrical lifespan. Certifications include UL and CSA recognition, ensuring safety standards compliance.
NKK Switches M2012LL3G01 Miniature Toggle Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC
- Contact Resistance: 10 milliohms maximum for silver, 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 to 100,000 operations depending on model
- Operating Temperature Range: -30°C to +85°C
- Vibration Resistance: 10 ~ 55Hz, peak-to-peak amplitude of 1.5mm, 2 hours per axis
- Shock Resistance: 50G acceleration in multiple directions
- Sealing: Splashproof options available meeting IP67 standards
- Mounting Torque: 3.0Nm for large bushings, 1.5Nm for others
- Soldering: Wave or manual soldering temperatures as per profiles, lever in OFF position during soldering
- Standards & Certifications: UL Recognized, CSA Certified, Flammability UL94V-0
- Materials: Brass with chrome plating, stainless steel case, polycarbonate or polyethylene caps
- Contact Materials & Ratings: Silver over Silver, Gold over Brass, dual-rating support for both power and logic applications

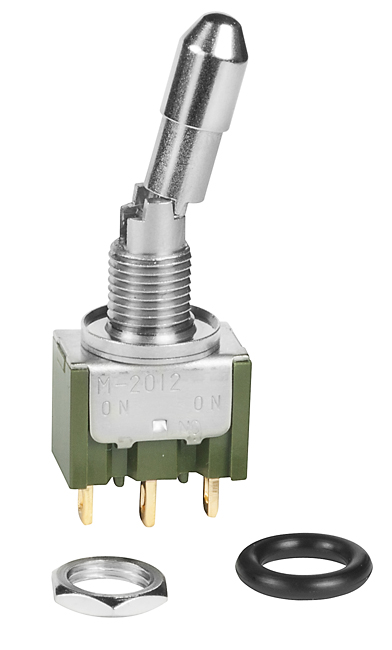

Buy the Buy NKK Miniature Toggle Switch Part Number M2012LL3G01 Online
