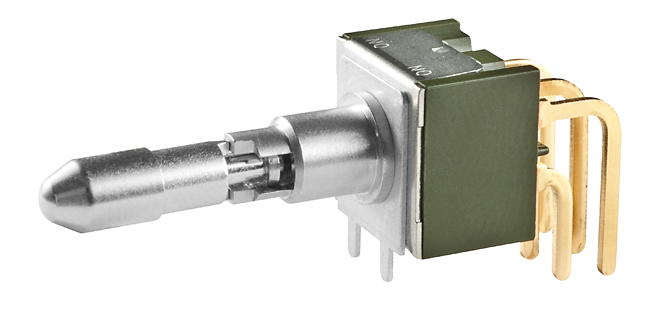

NKK Switches M2022LL2A30 Miniature Toggle Switch
A miniature toggle switch with multi-function capabilities, designed for compact electronic applications. It offers reliable operation in a small form factor, suitable for various circuits requiring manual control.
NKK Switches M2022LL2A30 Miniature Toggle Switch Specifications:
- Poles: 1, 2, 3, or 4 poles depending on model
- Circuit configurations: SPDT, DPDT, 3P, 4P, with ON-NONE-ON, ON-OFF-ON, or other switching schemes
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts and case for 1 minute
- Electrical Ratings: 6A @ 125V AC, 3A @ 250V AC, 0.4VA @ 28V DC
- Terminal Dimensions: 0.150” (3.81mm) right angle PCB, with optional vertical or other configurations
- Torque for mounting: 3.0Nm (26.55 Ibsin) double nut for large bushing; 1.5Nm (13 Ibsin); 0.7Nm (6 Ibsin) for all other bushings
- Operating Temperature Range: -30°C to +85°C
- Shock & Vibration Resistance: 50G acceleration, 10-55Hz vibration range
- Sealing: Splashproof options meeting IP67/IP68 standards
- Certifications: UL, cULus, CSA recognized when ordered with marking
- Soldering: Wave soldering and manual soldering options available for gold and silver contact models
- Material: Brass with chrome plating, stainless steel case, molded diallyl phthalate case, epoxy sealed terminals
Buy the NKK Series M Miniature Toggle Switch Reliable Circuit Control Part Number M2022LL2A30
Purchase the NKK Miniature Toggle Switch from our online store today. Designed for compact control in industrial equipment, it offers exceptional reliability, high switching capacity, and corrosion-resistant materials. With options for multiple poles, circuit configurations, and sealing standards, this switch ensures long-lasting performance across diverse applications. Whether for automation, instrumentation, or control panels, buy online now to ensure your project benefits from high quality and fast delivery. Trust NKK for your dependable switching solutions.
Get NKK Series M toggle switch today—built for precision, durability, and reliable circuit control in industrial environments.
