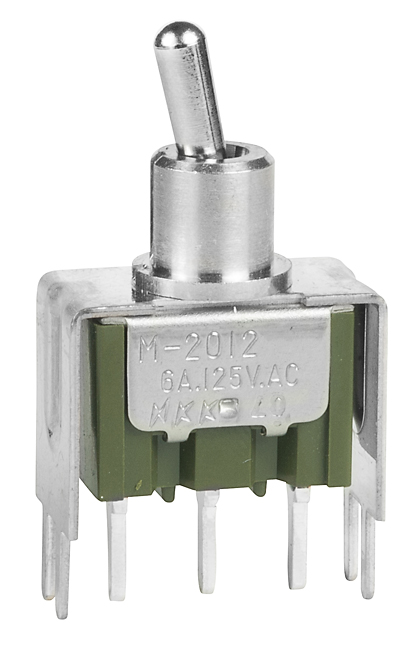

NKK Switches M2012S2A2W13 Miniature Toggle Switch
This miniature toggle switch offers reliable multi-function operation, suitable for industrial and electronic applications. Its compact design includes robust contact materials, high insulation resistance, and compliance with safety standards. Features include a high torque bushing, antirotational and anti-jamming design, and epoxy sealed terminals for increased durability. It is rated for 6A at 125V AC and 3A at 250V AC, with dual ratings for power and logic levels, making it versatile for various control circuits. Designed for long mechanical and electrical life, it is ideal for equipment and automation control.
NKK Switches M2012S2A2W13 Miniature Toggle Switch Specifications:
- Rated Power: 6A @ 125V AC and 3A @ 250V AC
- Logic Level Rating: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute, 1,500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum, 50,000 for flat, locking & splashproof devices
- Electrical Life: 25,000 operations minimum for silver; 50,000 for gold
- Operating Temperature Range: -30°C to +85°C
- Vibration Resistance: 10–55Hz with peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G acceleration
- Sealing: Splashproof options meet IP67 standards
- Mounting Torque: 3.0Nm for large bushing, 1.5Nm and 0.7Nm for others
- Environmental: Humidity 90–95% for 96 hours @ 40°C
- Standards: UL, CSA
- Terminals: Straight PC Mount with various bracket lengths
- Material: Brass with nickel plating, epoxy sealed terminals
- Optional Caps & Colors: Black, White, Red, Yellow, Green, Blue
Buy the NKK M2012S2A2W13 – Reliable Miniature Toggle for Industrial Applications
Order the NKK Miniature Toggle Switch today for reliable, dual-rated performance suitable for industrial controls and electronic applications. Its robust construction, high insulation resistance, and sealed terminals ensure long-lasting durability and safety. The switch features a compact size with versatile mounting options, making it ideal for automation, equipment control, and consumer electronics. With a rated capacity of 6A at 125V AC and 3A at 250V AC, coupled with dual power and logic ratings, it ensures flexible application in various circuit configurations. Purchase online now to enhance your control solutions.
Get NKK M2012S2A2W13 today—built for precision, durability, and versatile control in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches M2012S2A2W13?
You can click on the BUY or RFQ button to purchase M2012S2A2W13 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2012S2A2W13?
You can download the M2012S2A2W13 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2012S2A2W13?
NKK Switches
