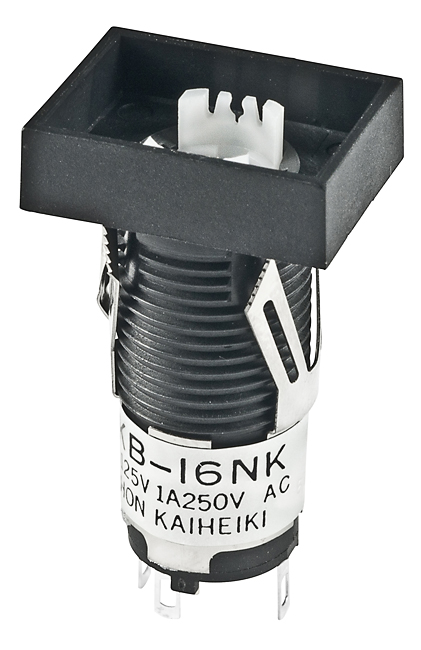

NKK Switches KB16NKW01 Illuminated Pushbutton
A miniature illuminated pushbutton switch designed for panel mounting applications. It features a compact size suitable for control panels and provides LED illumination for visibility and indication.
NKK Switches KB16NKW01 Illuminated Pushbutton Specifications:
- Body Diameter: 12mm (.472")
- Panel Thickness Capability: 8mm (.315")
- Mounting: Rear panel bushing or snap-in
- Housing Material: Polyamide
- Electrical Capacity: 1A @ 125/250V AC, 1A @ 30V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min
- Mechanical Life: 100,000 operations
- Electrical Life: 50,000 operations for silver contacts
- Nominal Operating Force: 100 ~ 200 grams
- Travel: 2.2mm (.087") pretravel, 0.8mm (.031") overtravel, 3.0mm (.118") total travel
- Operating Temperature Range: -25°C to +50°C
- Vibration: 10-55Hz, peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration
- Soldering Time & Temp: 3 sec @ 350°C or 5 sec @ 270°C
- Certification: UL Recognized, CSA Certified
- Lamp Type: LED, Super Bright, with polarity marked
Buy the NKK Series KB Illuminated Pushbutton: KB16NKW01
Purchase the NKK KB16NKW01 miniature illuminated pushbutton switch online today. Designed for durability with LED illumination, it ensures excellent visibility and reliable operation in industrial and panel control applications. The compact 12mm body size fits easily into control panels, while its robust construction withstands frequent use. Perfect for process control, automation, and machinery interfaces, this switch offers long life with up to 100,000 mechanical cycles. Elevate your control systems with this high-quality, easy-to-install switch ready for quick shipping and reliable performance.
Get NKK KB16NKW01 today—built for precision, long-lasting durability, and optimal visibility for control panels.
Frequently Asked Questions
Where can I buy NKK Switches KB16NKW01?
You can click on the BUY or RFQ button to purchase KB16NKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KB16NKW01?
You can download the KB16NKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KB16NKW01?
NKK Switches
