NKK Switches KB16SKG01 Illuminated Pushbutton
Miniature illuminated pushbutton switch designed for panel mounting. Suitable for user interface applications requiring visual indication and reliable operation.
NKK Switches KB16SKG01 Illuminated Pushbutton Specifications:
- Electrical Capacity (Resistive Load): 1A @ 125/250V AC, 0.4VA @ 28V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute minimum, 1,500V AC between contacts and case for 1 minute minimum
- Mechanical Life: 100,000 operations minimum for gold contacts
- Electrical Life: 50,000 operations minimum for silver contacts
- Nominal Operating Force: 0.98 ~ 2.45N for maintained, 0.98 ~ 1.96N for momentary
- Pretravel: 0.087 inches (2.2mm); Overtravel: 0.031 inches (0.8mm); Total Travel: 0.118 inches (3.0mm)
- Housing Material: Polyamide (UL94V-0)
- Lighting: Illuminated with LEDs, color options available
- Operating Temperature Range: -25°C to +50°C
- Mounting Type: Panel mount, with optional bezel or barrier integration
- Compliance Certifications: UL Recognized, CSA Certified

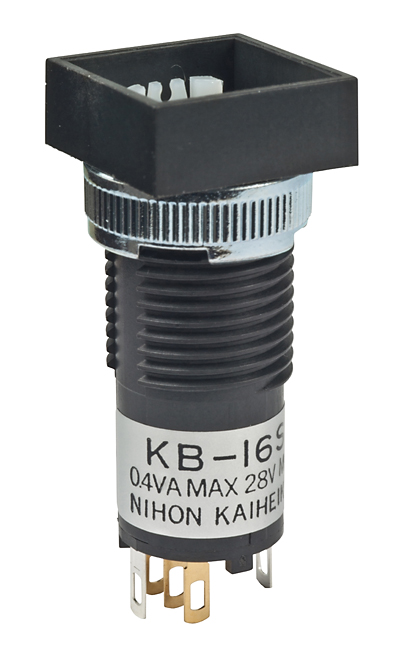

Buy the NKK KB16SKG01 – Reliable Illuminated Pushbutton for Industrial Applications
Enhance your control interface with the NKK KB16SKG01 miniature illuminated pushbutton switch. Featuring a robust design, panel mounting capability, and bright LED illumination in multiple colors, this switch ensures reliable operation and clear visual status indication. Perfect for industrial, automation, or user interface applications where durability and visibility are crucial. Easy to install, with certifications for safety and compliance, it offers long service life and consistent performance for demanding environments. Order online now and upgrade your control system with confidence.
Order your NKK Series KB16SKG01 illuminated pushbutton today and give your control panels the dependable visual indication they deserve.
Frequently Asked Questions
Where can I buy NKK Switches KB16SKG01?
You can click on the BUY or RFQ button to purchase KB16SKG01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KB16SKG01?
You can download the KB16SKG01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KB16SKG01?
NKK Switches
