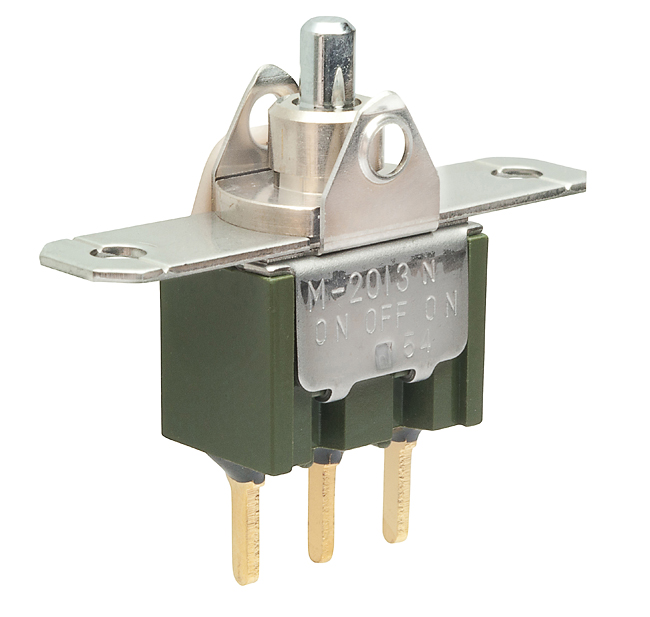

NKK Switches M2013TNG03 Miniature Rocker Switch
This miniature rocker switch features multiple switching options suitable for compact electronic devices. It offers reliable performance, with high insulation resistance and dielectric strength, making it ideal for panel mounting in various industrial and commercial applications. Constructed with a UL94V-0 flammability-rated case and epoxy sealed terminals, it provides excellent durability and protection against contaminants. The switch supports ratings up to 6A at 125V AC and 3A at 250V AC, with a mechanical life of at least 50,000 operations, ensuring long-lasting operation in demanding environments.
NKK Switches M2013TNG03 Miniature Rocker Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC
- Logic/Power Rating: 0.4VA max @ 28V AC/DC, dual silver/gold ratings
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1,000 Megohms min @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 min
- Mechanical Life: min 50,000 operations
- Electrical Life: Silver contacts 25,000 ops, Gold contacts 50,000 ops
- Angle of Throw: 25°
- Case Material: Diallyl phthalate resin (UL94V-0)
- Actuator Material: Polyamide, matte finish
- Environmental Temp Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration & Shock: Vibration 10-55Hz with 1.5mm amplitude, Shock 50G
- Soldering: Wave or manual, actuator in OFF position
- Certifications: UL, CSA recognized when ordered accordingly
Buy the NKK Switches M2013TNG03 – Reliable Miniature Rocker for Industrial Applications
Purchase the NKK Switches M2013TNG03 miniature rocker switch online today and ensure reliable performance with long mechanical and electrical lifespan. This switch is ideal for compact electronic devices, offering ratings up to 6A at 125V AC and 3A at 250V AC, with epoxy sealed terminals and UL94V-0 case material. Its durable construction withstands harsh environments, making it perfect for panel mounting in industrial, commercial, and consumer electronics. Enjoy fast shipping and quality assurance when you buy online now.
Get NKK Switches M2013TNG03 today—compact, durable, and designed for long-lasting performance in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches M2013TNG03?
You can click on the BUY or RFQ button to purchase M2013TNG03 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2013TNG03?
You can download the M2013TNG03 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2013TNG03?
NKK Switches
