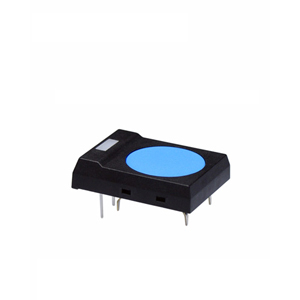

NKK Switches JF15RP2GF Illuminated Tactile Switch
The Ultra-thin tactile switch with illumination is designed for PCB applications, offering a slim profile of just 5.7mm from the PCB to the top. It features red, green, or yellow LEDs with spot or full face illumination, ensuring clear visual feedback. Made with durable materials like polyamide and glass fiber reinforced polyester, it provides reliable operation with minimal force and short travel. Its rubber seal prevents contact contamination, supporting automated soldering and cleaning processes, making it ideal for compact electronic devices requiring long-lasting, dependable tactile switching.
NKK Switches JF15RP2GF Illuminated Tactile Switch Specifications:
- Profile height: 5.7mm from PCB to switch top
- LED Colors: Red, Green, Yellow with spot or full face illumination
- Actuator Types: Square, Round, Sculptured
- Switch Type: SPST, Momentary or ON/OFF circuit
- Electrical capacity: 50mA @ 24V DC, 250V AC for 1 min
- Contact resistance: 50 milliohms max
- Insulation resistance: 500 megohms min @ 250V DC
- Durability: 500,000 operations minimum
- Operating Force: 3.0N flush actuator, 2.0N sculptured
- Actuator Height: Spot Illumination: 0.4mm; Full Face: 0.8mm
- Material: Polyamide for illumination, glass fiber reinforced polyester
- Sealing: Rubber seal to prevent contact contamination
- Mounting: Crimped terminals, PCB grid .100" (2.54mm)
- Environmental: Operating temperature 25°C to 70°C, 90-95% humidity for 96 hours at 40°C
- Soldering: Wave, manual, automated cleaning compatible
- Standards: Designed for low-voltage, low-current applications, not UL recognized or CSA certified
Buy the NKK Series JF Illuminated Tactile Switch: JF15RP2GF
Purchase your NKK Series JF15RP2GF illuminated tactile switch online today to ensure reliable, long-lasting tactile feedback in your compact electronic projects. Designed with a slim profile of just 5.7mm and featuring bright LED illumination in red, green, or yellow, this switch offers crisp tactile and audible feedback. Perfect for PCB mounting, it supports automated soldering and cleaning, making assembly efficient. Enhance your devices with a high-quality, durable tactile switch that is simple to install and guarantees precise operation.
Order your NKK Series JF15RP2GF illuminated tactile switch today and enhance your electronic device with dependable slim-profile tactile feedback.
