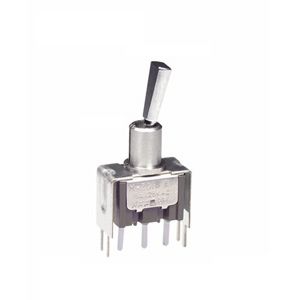

NKK Switches M2018ES2W13 Miniature Toggle Switch
This miniature toggle switch offers reliable on/off and multi-position control suitable for compact electronic applications. Its durable construction includes antirotation and antijamming features, high insulation barriers, and sealed epoxy terminals for protection against contaminants. The switch supports both power and logic circuits with dual ratings of 6A at 125V AC and 0.4VA maximum at 28V DC. Its robust design ensures long mechanical and electrical life, with environmental resistance for operational stability in various environments. Ideal for precise control in space-constrained electronic systems.
NKK Switches M2018ES2W13 Miniature Toggle Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC, 0.4VA max @ 28V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms for gold
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC contact to case
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations min for gold, 25,000 for silver
- Operating Temperature: -30°C to +85°C
- Vibration Resistance: 10-55Hz, peak-to-peak 1.5mm
- Shock Resistance: 50G acceleration
- Sealing: IP67 option with splashproof bushings
- Mounting Torque: 3.0Nm (large bushing), 1.5Nm or 0.7Nm for others
- Material: Brass with chrome plating, stainless steel case, UL94V-0 diallyl phthalate case
- Terminals: Epoxy sealed, straight PC mount with bracket options
- Standards & Certifications: UL, CSA recognized with optional markings
- Bushing Options: Smooth, threaded, with keyway, IP67 sealed variants
- Bushing Dimensions: 0.280”, 0.350”, various lengths with reinforcement and locking features
Buy the NKK Series M Miniature Toggle Switch: M2018ES2W13
Order the NKK Series M Miniature Toggle Switch M2018ES2W13 online today to ensure reliable on/off control in your electronic projects. This switch features high durability, sealed epoxy terminals, and optional splashproof bushings with IP67 sealing for use in harsh environments. Its dual rating of 6A @ 125V AC and 0.4VA @ 28V DC makes it versatile for power and logic circuits, providing long operational life and excellent insulation resistance. Perfect for space-efficient, precision control applications requiring robust, tested components.
Buy NKK Series M Miniature Toggle Switch M2018ES2W13 now and experience unmatched reliability and performance in compact electronic control systems.
Frequently Asked Questions
Where can I buy NKK Switches M2018ES2W13?
You can click on the BUY or RFQ button to purchase M2018ES2W13 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2018ES2W13?
You can download the M2018ES2W13 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2018ES2W13?
NKK Switches
