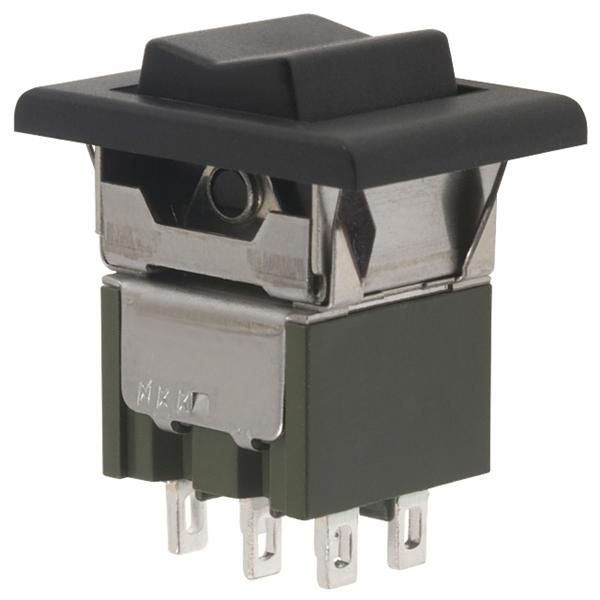

NKK Switches M2019TJW01FG1G Miniature Rocker Switch
This miniature rocker switch offers versatile multi-function control with a compact, reliable design, ideal for electronic devices and applications where space is limited and dependable operation is essential. It features multiple poles and circuits, including SPDT and DPDT configurations, with rated currents up to 6A at 125V AC. The switch incorporates high-quality materials such as stainless steel and diallyl phthalate, ensuring durability and safety. Suitable for panel mounting with snap-in, flat frame, or PCB options, it adheres to recognized UL and CSA standards, making it perfect for electronic control systems requiring durable, space-efficient switching solutions.
NKK Switches M2019TJW01FG1G Miniature Rocker Switch Specifications:
- Poles and Circuits: SPDT, DPDT, ON-NONE-ON, ON-OFF-ON configurations
- Current Ratings: 6A at 125V AC, 3A at 250V AC, 0.4VA at 28V DC
- Switch Life: 50,000 operations minimum
- Materials: Stainless steel actuator, diallyl phthalate case, epoxy sealed terminals
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Operating Temperature Range: -30°C to +85°C
- Vibration & Shock Resistance: 10-55Hz, 50G acceleration
- Mounting Options: Snap-in, flat face, PCB
- Standards & Certifications: UL 94V-0 flammability, UL Recognized, CSA Certified
Buy the NKK Series M Miniature Rocker Switch: M2019TJW01FG1G
Discover the high-quality NKK Series M miniature rocker switch, designed for reliable multi-function control in space-constrained environments. Featuring durable stainless steel and diallyl phthalate case, it offers multiple poles and circuits with ratings up to 6A at 125V AC. Perfect for electronic control systems, this switch meets UL and CSA standards for safety and quality. Easy to mount with snap-in, flat frame, or PCB options, ensuring secure installation in various applications for long-lasting performance.
Order your NKK Series M miniature rocker switch M2019TJW01FG1G today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches M2019TJW01FG1G?
You can click on the BUY or RFQ button to purchase M2019TJW01FG1G from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2019TJW01FG1G?
You can download the M2019TJW01FG1G datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2019TJW01FG1G?
NKK Switches
