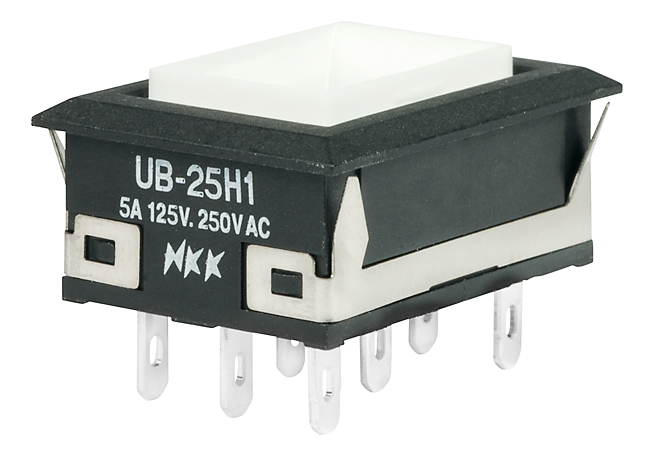

NKK Switches UB25NKW015D Illuminated Pushbutton Switch
This is a low-profile, illuminated pushbutton switch suitable for through-hole PC mounting and soldering. It features a compact design, making it ideal for applications requiring space efficiency and visual indication. The switch includes bright LEDs in multiple colors such as red, amber, green, white, and blue, with options for full face or spot illumination. Designed for durability, it has an operating temperature range of -20°C to +70°C, an electrical life of at least 200,000 operations, and a rated capacity of 5A at 125/250V AC, ensuring reliable performance in various control systems.
NKK Switches UB25NKW015D Illuminated Pushbutton Switch Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Switch Type: Illuminated pushbutton
- Circuit Ratings: 5A @ 125/250V AC, 0.4VA max @ 28V AC/DC
- Electrical Resistance: 50 milliohms max for silver contacts, 100 milliohms max for gold contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Operating Temperature Range: -20°C to +70°C
- LED Colors: Red, Amber, Green, White, Blue
- LED Forward Voltage: 1.85V to 3.2V depending on color
- LED Current: 20-30mA
- Mounting: PCB, snap-in
- Panel Thickness: 0.039” to 0.126” (1.0mm to 3.2mm)
Buy the NKK Series UB Illuminated Pushbutton: UB25NKW015D
Discover the compact and durable illuminated pushbutton switch that offers bright LED indicators in multiple colors, perfect for control panels and space-constrained applications. Rated for 5A at 125/250V AC, it features a reliable solder or through-hole mounting, with a wide temperature range of -20°C to +70°C. Its high electrical and mechanical lifespan ensures long-term performance in industrial and automation projects. Easy to install and perfect for applications requiring visual alerts and space efficiency, order online today for fast delivery.
Order your NKK Series UB25NKW015D illuminated pushbutton today and enhance your control panel with reliable, space-saving illumination.
Frequently Asked Questions
Where can I buy NKK Switches UB25NKW015D?
You can click on the BUY or RFQ button to purchase UB25NKW015D from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB25NKW015D?
You can download the UB25NKW015D datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB25NKW015D?
NKK Switches
