NKK Switches D22013P Miniature Toggle Switch
The PCB Mount Miniature Toggle Switch Series D2 offers reliable, compact switching solutions with UL94V-0 flame-resistant housing and a wide electrical capacity up to 48V. Suitable for low-current, logic-level circuits, it features smooth detent actuation, increased contact stability, and corrosion-resistant materials like brass with gold plating. The switches incorporate easy-to-assemble 0.8mm PCB terminals, conform to industry standards with 2.54mm grid spacing, and withstand environmental stresses such as humidity, shock, and temperature ranges from -10°C to +70°C. Ideal for various electronic control applications requiring durability and precision.
NKK Switches D22013P Miniature Toggle Switch Specifications:
- Flammability: UL 94V-0
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts, 1,500V AC between contacts and case
- Mechanical Life: 50,000 to 100,000 operations
- Electrical Life: Minimum 50,000 operations
- Contact Material: Brass with gold plating or nickel plating
- Terminal Diameter: 0.8mm
- Terminal Spacing: 2.54mm grid spacing
- Operating Temperature: -10°C to +70°C
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock Resistance: 50G acceleration
- Environmental Humidity: 90-95% for 240 hours at 40°C
- Soldering: Wave soldering recommended, manual soldering max 410°C for 4 seconds
- Housing Material: UL94V-0 flame rated resin
- Standards & Certifications: UL 94V-0, designed for low-current logic applications
- Dimensions: Standard terminal spacing conforms to 2.54mm grid
- Contacts: Nonshorting, break-before-make action
- Switch Positions: ON-NONE-ON, ON-OFF-ON options

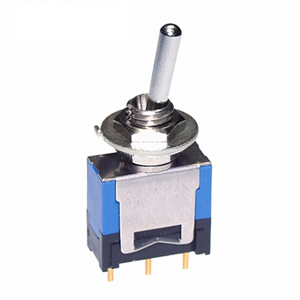

Buy the Buy Nihon Kaiheiki PCB Mount Miniature Toggle Switch Part Number D22013P Online
