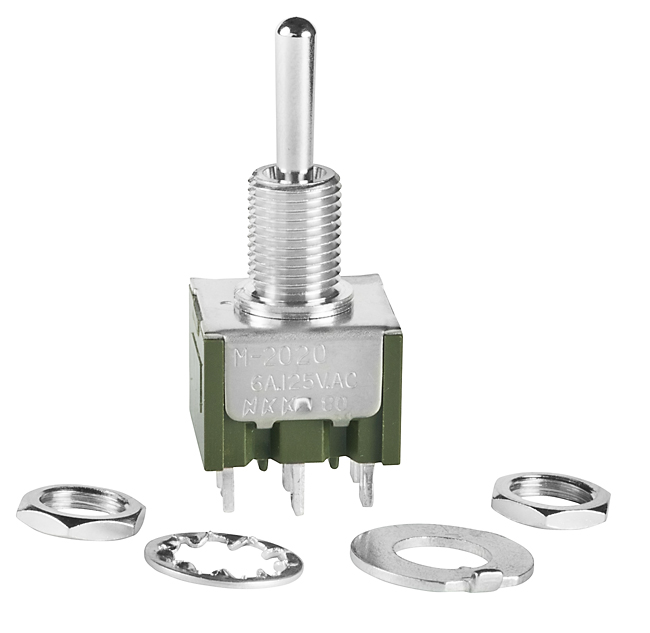

NKK Switches M2024SS1W01 Miniature Toggle Switch
A miniature toggle switch designed for multi-function applications, suitable for compact electronic devices and control panels. It features dual ratings for power and logic circuits, robust brass and polycarbonate construction, and optional splashproof configurations. With a high mechanical lifespan and reliable electrical ratings, it is ideal for control systems requiring durability and precise switching. The switch includes epoxy sealed terminals, high insulation barriers, and compatibility with various mounting hardware, ensuring dependable performance in industrial, commercial, and electronic applications.
NKK Switches M2024SS1W01 Miniature Toggle Switch Specifications:
- Electrical Capacity: 6A @ 125V AC & 3A @ 250V AC, 0.4VA max @ 28V AC/DC
- Contact Resistance: 10 milliohms (silver), 20 milliohms (gold)
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum (silver), 50,000 (gold)
- Operating Temp Range: -30°C to +85°C
- Vibration Resistance: 10-55Hz, peak-to-peak 1.5mm
- Shock Resistance: 50G acceleration
- Sealing: Splashproof options B3, D3, D8, 13, L8 (IP67 compliant)
- Mounting Torque: 3.0Nm (large bushing), 1.5Nm (standard), 0.7Nm (small)
- Soldering: Wave or manual, with lever in OFF position during soldering
- Standards & Certifications: UL Recognized / CSA Certified, UL94V-0 UL flammability rating
- Terminal Types: Solder Lug, Quick Connect, PC Mount, Wirewrap
- Material: Brass with chrome plating, polycarbonate cases, epoxy sealed terminals
- Bushing: Brass, zinc chromate, or splashproof with D Flat, D3, D8 options
