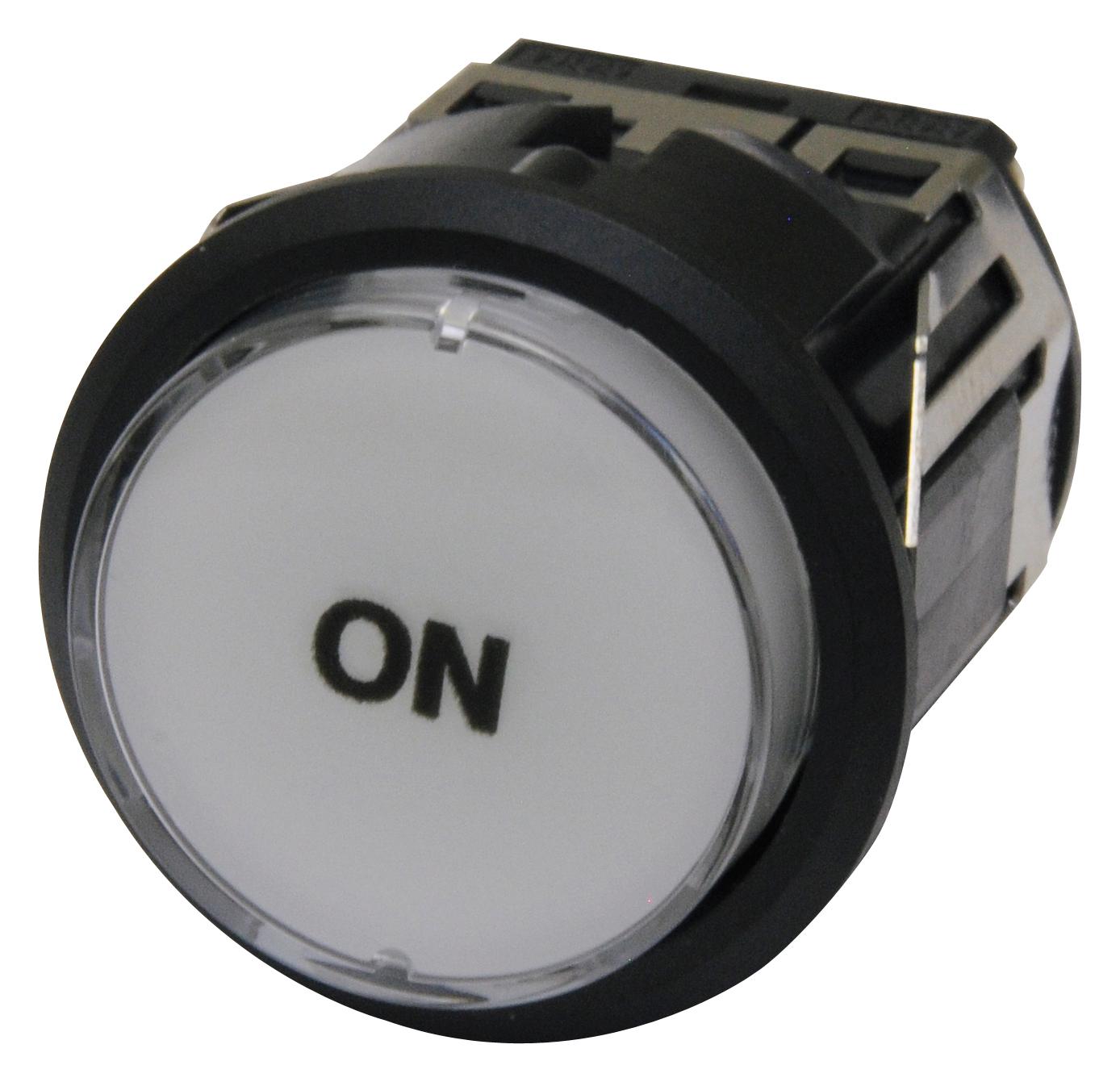

NKK Switches LB02VA001 Indicator Light
The LB Indicator is a standard size round indicator with a clear polycarbonate lens and a white insert showing a legend, such as ON, in bold Helvetica. It features a snap-in mount for easy panel installation. The LED version operates at 4V with a resistor, suitable for panel indicator applications. Made from high-quality materials including polyamide and stainless steel, it complies with RoHS standards. Its environmental ratings support operation from -25°C to +50°C and withstands humidity, vibration, and shock for reliable performance in industrial environments.
NKK Switches LB02VA001 Indicator Light Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Housing Finish: Glossy
- Base Material: Liquid crystal polymer (UL94V-0)
- Lens Type: Clear
- Legend: ON (Laser Etched, Helvetica Bold, 10 Point)
- Legend Color: Black
- LED Voltage: 4V, with resistor, requires ballast resistor if voltage exceeds rated
- Maximum Forward Current: 5mA
- Forward Voltage: 5V
- Reverse Voltage: 25V
- Ambient Temperature Range: -25°C to +50°C
- Humidity: 90-95% for 96 hours at 40°C
- Vibration Resistance: 10-55Hz, 1.5mm amplitude
- Shock Resistance: 50G, in 6 directions, 2 hours each
- Installation Force: Cap - 3.92N, Connector - 52.95N
- Soldering Temperature: 390°C for 4 seconds
- RoHS Compliant
- Standards & Certifications: UL94V-0 for housing and base
Buy the NKK Switches Series Indicator: LB02VA001
Order the NKK Switches LB02VA001 indicator light online today and experience a reliable, high-visibility panel indicator. Perfect for industrial control panels, its robust polyamide housing and clear lens ensure durability and easy readability. Designed for easy snap-in installation, it features a bright LED with resistor circuitry for consistent operation. Its wide operating temperature range from -25°C to +50°C, resistance to humidity, vibration, and shock makes it suitable for demanding applications. Purchase online now for quick delivery and reliable performance.
Get NKK Switches LB02VA001 today—built for high reliability, LED visibility, and durable panel mounting in industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches LB02VA001?
You can click on the BUY or RFQ button to purchase LB02VA001 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB02VA001?
You can download the LB02VA001 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB02VA001?
NKK Switches
