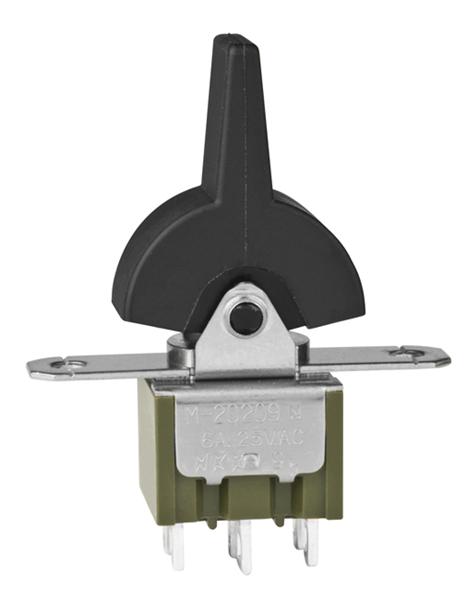

NKK Switches M2027TNW01EA Miniature Rocker Switch
This miniature rocker switch offers reliable performance and versatile mounting options, ideal for control panels, electronic devices, and electrical systems. Its high insulating barriers and epoxy sealed terminals enhance durability and protection from contaminants. Designed with a UL 94V-0 flammability rating in a durable diallyl phthalate case, it features metallic contact materials with ratings up to 6A at 125V AC and 3A at 250V AC. The switch supports multiple poles and circuits, with a mechanical life of at least 50,000 operations, suitable for demanding industrial and consumer applications.
NKK Switches M2027TNW01EA Miniature Rocker Switch Specifications:
- Power Level (silver): 6A @ 125V AC
- Logic Level (gold): 0.4VA max @ 28V AC/DC
- Logic/Power Level (gold over silver): Combines silver & gold ratings
- Contact Resistance: 10 milliohms max for silver; 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Angle of Throw: 25°
- Materials: Stainless Steel actuator, diallyl phthalate case, phosphor bronze contacts
- Environmental: Operating temperature -30°C to +85°C; Humidity 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm, 2 hours each axis
- Shock: 50G acceleration in 6 directions
- Soldering: Wave and manual soldering profiles provided for gold and silver contacts
- Certifications: UL and CSA recognized when ordered with markings, UL94V-0 rated case
Buy the NKK 6A-125V U+2013 Reliable Miniature Rocker for Industrial Applications
Discover the reliability and versatility of the miniature rocker switch, essential for control panels and electronic devices. Its durable construction ensures long-lasting performance, with multiple mounting options and high insulation resistance. Perfect for industrial and consumer applications, it supports multiple circuits with a mechanical life of over 50,000 operations. Equipped with epoxy sealed terminals and UL/CSA recognition, this switch provides safety, durability, and ease of installation. Order online now to enhance your device’s control system with top-quality switch technology.
Get NKK PartNumber today—built for precision and long-lasting durability in electronic control systems.
Frequently Asked Questions
Where can I buy NKK Switches M2027TNW01EA?
You can click on the BUY or RFQ button to purchase M2027TNW01EA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2027TNW01EA?
You can download the M2027TNW01EA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2027TNW01EA?
NKK Switches
