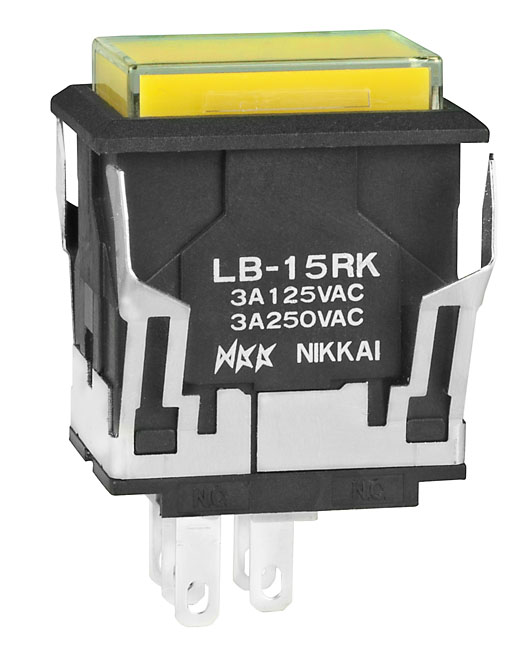

NKK Switches LB15RKW0101JE Illuminated Pushbutton
The Standard size illuminated pushbutton switch features snap-in mounting design, bright full surface illumination with front panel relamping, and choice of super bright LEDs in multiple colors. It provides tactile and audible feedback, long electrical life, and a compact form factor. Suitable for automation, control panels, and machinery, it meets IP65 standards for sealing. Compatible with various lighting options including incandescent, neon, and LED lamps, it offers reliable electrical ratings up to 3A at 125V or 250V AC, with robust materials ensuring durability in demanding environments.
NKK Switches LB15RKW0101JE Illuminated Pushbutton Specifications:
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1000V AC contact-to-contact, 1500V AC contact-to-case for 1 min
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum for maintained circuit, 100,000 for momentary
- Nominal Operating Force: 4.0 N
- Pretravel: 1.5mm, Overtravel: 1.5mm, Total Travel: 3.0mm
- Materials: Housing - Glass fiber reinforced polyamide; Switch terminals - Silver or gold plated; Illumination options include LED, incandescent, neon
- Operating Temperature: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Panel Seal: IP65, matching indicators available
- Mounting: Snap-in clips accommodate panel thickness 1.0 to 4.0mm
- Standards & Certifications: Recognized under UL, cUL, CSA
- Housing Color: Black
- Dimensions: Typical cap diameter approximately 16.2mm x depth 20.7mm
Buy the NKK Series LB Illuminated Pushbutton: LB15RKW0101JE
Enhance your control systems with the NKK Series LB illuminated pushbutton. Features snap-in mounting, bright LED illumination, IP65 sealing, and long electrical life. Suitable for industrial automation, machinery, and control panels, it offers reliable performance with a 3A electrical rating at 125V or 250V AC. Constructed from durable materials, it withstands harsh environments while providing tactile and audible feedback. Easy to install, with comprehensive certifications, this switch is ideal for demanding control applications. Purchase online today for quality and convenience.
Buy NKK Series LB LB15RKW0101JE illuminated pushbutton now and experience unmatched reliability and performance in industrial control panels.
Frequently Asked Questions
Where can I buy NKK Switches LB15RKW0101JE?
You can click on the BUY or RFQ button to purchase LB15RKW0101JE from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15RKW0101JE?
You can download the LB15RKW0101JE datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15RKW0101JE?
NKK Switches
