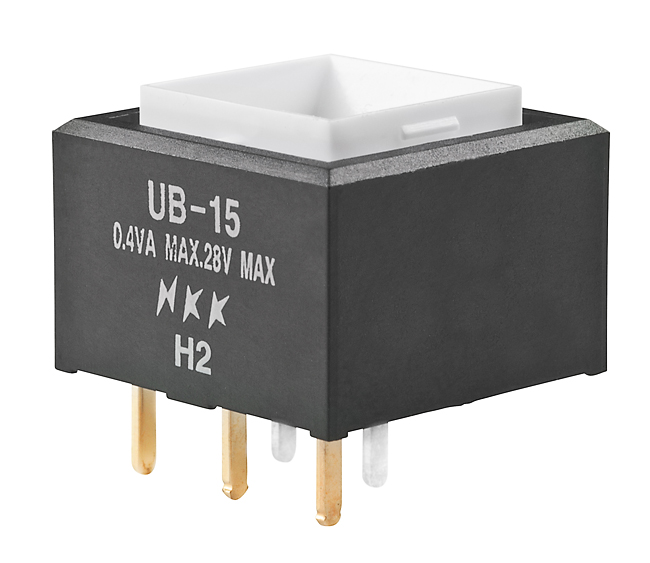

NKK Switches UB15SKG036G Pushbutton Switch
The low-profile illuminated push button switch features compact design ideal for tight spaces, offering reliable operation with LED illumination in multiple colors. Suitable for PCB mount applications, it's designed for durability with a long mechanical and electrical life. The switch incorporates a snap-acting mechanism delivering sensitive actuation with audible feedback, and supports quick make/break actions to limit arcing. Constructed from high-quality materials including polyamide housing, stainless steel components, and gold or silver contacts, this switch adheres to safety standards for flammability, UL, and CSA certifications, making it perfect for industrial and control panel applications.
NKK Switches UB15SKG036G Pushbutton Switch Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contact Material: Silver alloy or copper with gold plating
- Electrical Capacity: 5A @ 125/250V AC or 5A @ 30V DC
- Electrical Life: 200,000 operations minimum for gold contacts
- Mechanical Life: 1,000,000 operations minimum for momentary
- Operating Temperature Range: -20°C to +70°C
- Operating Force: 1.9N for single pole, 2.55N for double pole (square), 3.1N for rectangular
- Travel: Pretravel approximately 1.7mm, total travel approximately 2.3mm
- Dimensions: Compact size suitable for panel thickness 0.039” to 0.126” (1.0mm to 3.2mm)
- LED Voltage: 28V AC/DC maximum for illuminated versions
- Standards & Certifications: UL, CSA recognized, flammability UL 94V-0
- Environmental Durability: Humidity 95% for 96 hours, vibration 3Hz-55Hz, shock 50G
Buy the Buy NKK Low Profile Pushbuttons Part Number UB15SKG036G Online
Order your NKK Series UB pushbutton switch online today to ensure your projects have high-quality, dependable switching solutions. Designed for panel mounting with LED illumination options, this switch features quick make/break contacts, durable construction, and ISO standards compliance. Its compact size fits even the tightest spaces while providing long mechanical and electrical life, making it an ideal choice for industrial control panels, automation systems, and user interfaces. Purchase now to benefit from fast delivery and expert support for all your control component needs.
Order your NKK Series UB low profile illuminated push button today and enhance your control panels with reliable, compact switches designed for tough environments.
Frequently Asked Questions
Where can I buy NKK Switches UB15SKG036G?
You can click on the BUY or RFQ button to purchase UB15SKG036G from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15SKG036G?
You can download the UB15SKG036G datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15SKG036G?
NKK Switches
