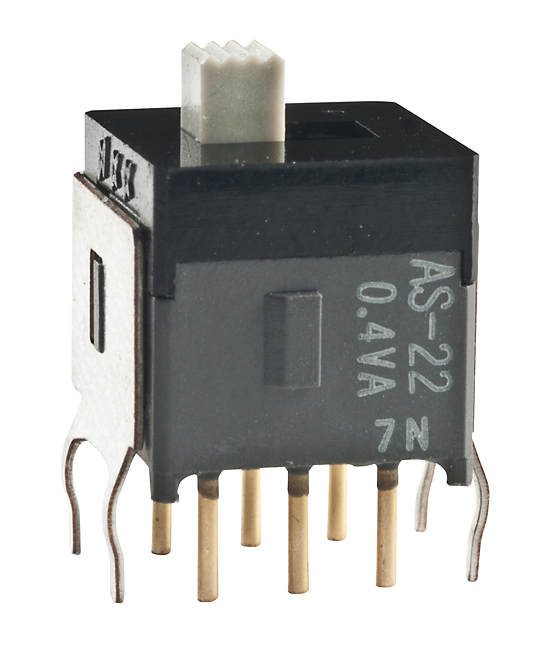

NKK Switches AS22AB Subminiature Slide Switch
This is a subminiature slide switch designed for compact electronic applications. It features a small form factor, suitable for space-constrained environments, and provides reliable toggle operation for circuit control.
NKK Switches AS22AB Subminiature Slide Switch Specifications:
- Actuator Lengths: .082" (2.1mm); Overtravel: .016” (0.4mm); Total Travel: .098” (2.5mm)
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Electrical Capacity (Resistive Load): 0.4VA max @ 28V AC/DC, range 0.1mA ~ 0.1A
- Operating Temperature: -30°C to +85°C (-22°F to +185°F)
- Vibration Resistance: 10 ~ 60Hz, peak-to-peak amplitude 1.5mm
- Shock Resistance: 50G acceleration in 6 directions
- Durability: 50,000 operations minimum
- Material: Glass fiber reinforced polyamide, carbon blended polyacetal
- Contacts: Tin plated phosphor bronze, gold plated brass
- Terminal Spacing: 100” x .100” (2.54mm x 2.54mm) conforming to PCB grid
- Soldering: Wave soldering recommended, manual soldering for single/double pole with specific profiles
- Standards & Certifications: Not UL or CSA certified; designed for low-voltage, low-current logic circuits.
Buy the NKK Series AS Subminiature Slide Switch: AS22AB
Purchase the NKK Series AS22AB subminiature slide switch online today and benefit from its compact size, durable construction, and reliable toggle operation. Perfect for space-constrained electronic applications, this switch provides precise control in low-voltage circuits, ensuring long-term performance and stability. Easy to install with PCB conforming terminal spacing, it is an ideal choice for developers seeking dependable switches for miniature electronic devices. Order now to enhance your project’s reliability and efficiency with ease.
Buy NKK Series AS22AB subminiature slide switch now and experience unmatched reliability and performance for space-limited electronic control.
Frequently Asked Questions
Where can I buy NKK Switches AS22AB?
You can click on the BUY or RFQ button to purchase AS22AB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part AS22AB?
You can download the AS22AB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of AS22AB?
NKK Switches
