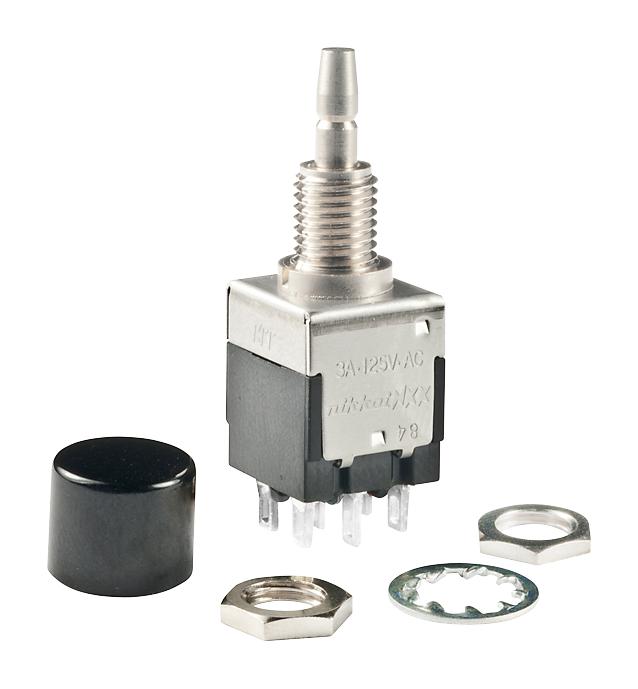

NKK Switches EB2061CA Miniature Pushbutton Switch
The Light Touch Miniature Pushbutton series EB offers high-quality, durable switches suitable for panel mount applications. Designed with stainless steel frames and epoxy sealed terminals, these pushbuttons resist corrosion and contaminants. They feature a momentary or alternate action with a 3A @ 125V AC rating, ensuring reliable operation in various control systems. The switches include options for bushing or snap-in mounting, with multiple bezel and LED configurations for enhanced visual indication. They comply with UL and CSA standards, making them suitable for industrial and automation use.
NKK Switches EB2061CA Miniature Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC for silver contacts
- Voltage Rating: 125V AC, 28V AC/DC max for gold contacts
- Contact Resistance: Maximum 10 milliohms (silver), 20 milliohms (gold)
- Insulation Resistance: Minimum 1,000 megohms @ 500V DC
- Dielectric Strength: 1,000V AC between contacts; 1,500V AC between contacts and case
- Mechanical Life: 100,000 operations minimum
- Operating Temperature: -10°C to +70°C
- Material: Brass with nickel plating, stainless steel frame, heat-resistant resin case
- Mounting: Bushing or snap-in options, panel thickness up to 0.126" (3.2mm)
- Cap Colors & Sizes: Black, white, red, yellow, green, blue, polycarbonate finish
- LED Colors & Specs: Green, Red, Yellow, with forward voltage around 2.0–2.25V and max forward current 25–30mA
- Standards: UL, CSA recognized; cases meet UL94V-0 flammability rating
- Environmental: Shock and vibration tested; humidity resistance tested for 96 hours at 40°C
Buy the Buy NKK Switches Light Touch Miniature Pushbuttons Part Number EB2061CA Online
Experience the dependable performance of the NKK Switches EB2061CA miniature pushbutton—ideal for control panels, automation, and industrial equipment. Featuring high durability, corrosion-resistant stainless steel frames, epoxy-sealed terminals, and multiple mounting options, these switches ensure long-lasting operation. With LED indicators available in various colors, they provide clear visual feedback. Certified under UL and CSA standards, the EB2061CA is suitable for demanding environments, offering peace of mind and enhanced system reliability. Order online today and upgrade your control interface with quality and precision.
Get NKK Switches EB2061CA today—designed for reliability, corrosion resistance, and versatile control panel applications.
Frequently Asked Questions
Where can I buy NKK Switches EB2061CA?
You can click on the BUY or RFQ button to purchase EB2061CA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part EB2061CA?
You can download the EB2061CA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of EB2061CA?
NKK Switches
