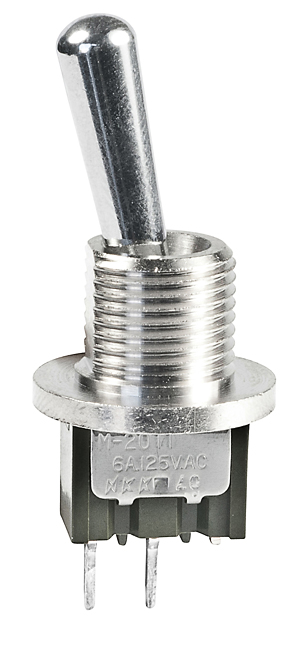

NKK Switches M2011B2B3W03 Miniature Toggle Switch
This is a miniature toggle switch with multiple functions, suitable for various electronic applications. It offers reliable operation in a compact form factor. Designed with high insulation barriers, corrosion-resistant contacts, and dual ratings for power and logic circuits, it ensures durability and versatility. The switch features epoxy sealed terminals, optional splashproof options, and precise mounting hardware. Its robust construction and standard certifications make it ideal for control panels, automation systems, and electronic devices requiring dependable switching performance.
NKK Switches M2011B2B3W03 Miniature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 6A @ 125V AC & 3A @ 250V AC
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum; 50,000 for flat, locking & splashproof devices
- Electrical Life: 25,000 operations minimum for silver; 50,000 for gold
- Operating Temperature Range: -30°C to +85°C
- Vibration: 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm for 1 minute
- Shock: 50G acceleration in 6 directions
- Sealing: Splashproof options meet IP67 standards
- Mounting Torque: 3.0Nm for large bushings, 1.5Nm for others
- Materials: Brass with chrome or nickel plating, polycarbonate or polyethylene caps
- Soldering: Wave or manual soldering per profiles in supplement section
- Standards & Certifications: UL Recognized, CSA Certified, recognized at 6A @ 125V AC and 3A @ 250V AC
- Environmental: Operating temperature -30°C to +85°C, high humidity and vibration resistance
Buy the NKK Series M Miniature Toggle Switch: M2011B2B3W03
Enhance your electronic control systems with the NKK Series M Miniature Toggle Switch. Featuring dual ratings, epoxy sealed terminals, and splashproof options, this switch ensures durability, high performance, and safety in demanding environments. Its robust construction meets strict UL and CSA standards, making it perfect for automation, control panels, and portable devices. Easy to install with standard hardware, the switch offers excellent insulation, long mechanical and electrical life, and operates reliably across a wide temperature range. Order online today for trusted quality and seamless integration.
Buy NKK Series M Miniature Toggle Switch now and experience unmatched reliability and performance in compact switching solutions.
Frequently Asked Questions
Where can I buy NKK Switches M2011B2B3W03?
You can click on the BUY or RFQ button to purchase M2011B2B3W03 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2011B2B3W03?
You can download the M2011B2B3W03 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2011B2B3W03?
NKK Switches
