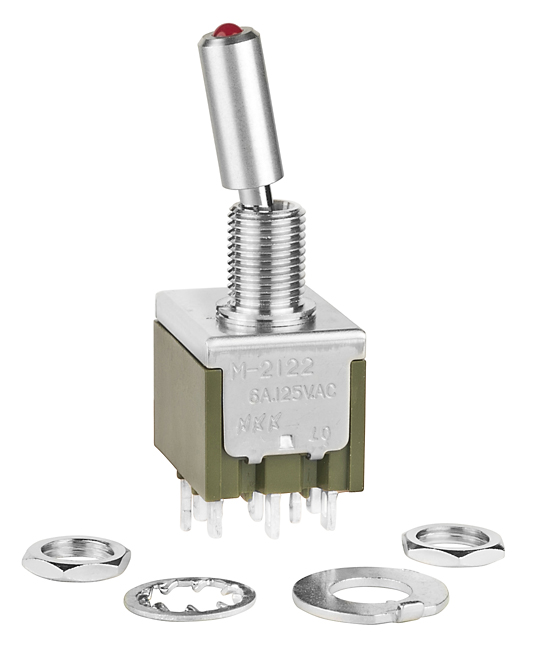

NKK Switches M2122LCW01 Toggle Switch
This miniature illuminated toggle switch features solder lug terminals and a PCB mount option, making it ideal for compact electronic applications. It provides reliable switching operation with LED indicator illumination for easy visual identification. Constructed with high-quality materials, including silver contacts for durability and corrosion resistance, it supports up to 6A at 125V AC and 3A at 250V AC. Designed to operate within -25°C to +70°C, it ensures longevity and consistent performance even in demanding environments, suitable for panel mounting and electronic control systems.
NKK Switches M2122LCW01 Toggle Switch Specifications:
- Electrical Capacity: 6A @ 125V AC or 3A @ 250V AC
- LED Voltage Range: Max. 28V AC/DC
- Contact Resistance: 10 milliohms maximum for silver contacts
- Insulation Resistance: 1,000 megaohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Nominal Operating Force: Not specified in data
- Operating Temperature Range: -25°C to +70°C
- Vibration Resistance: 10 ~ 55Hz, peak-to-peak amplitude of 1.5mm for 2 hours
- Shock Resistance: 50G acceleration in 6 directions
- Materials: Housing - steel with tin plating, Contacts - silver alloy, Base - polyamide, Terminals - solder lug or PCB
Buy the NKK 2122LCW01 – Reliable Toggle Switch for Industrial Applications
Purchase your NKK Series 2122LCW01 toggle switch online today and ensure reliable performance for your electronic and control system needs. Featuring solder lug terminals and PCB mounting options, this switch supports up to 6A at 125V AC, with robust construction for durability and high resistance to vibration and shock. Its front-illuminated LED indicator provides clear visual status, making it ideal for demanding industrial applications. Easy to install, it guarantees long-lasting operation and consistent contact resistance, ensuring your projects operate smoothly and efficiently.
Order your NKK Series 2122LCW01 toggle switch today and enhance your electronic projects with dependable switching performance and enhanced illumination.
Frequently Asked Questions
Where can I buy NKK Switches M2122LCW01?
You can click on the BUY or RFQ button to purchase M2122LCW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2122LCW01?
You can download the M2122LCW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2122LCW01?
NKK Switches
