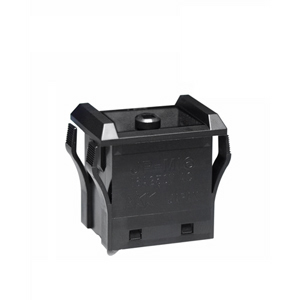

NKK Switches JPM16B Power Push Button Switch
A power push button switch, suitable for manual activation in electronic devices. Designed for reliable operation with a simple push action.
NKK Switches JPM16B Power Push Button Switch Specifications:
- Electrical Capacity (Resistive Load): 10A @ 125/250V AC for JPM models & 16A @ 125/250V AC for JPL models
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum between contacts for 1 minute; 4,000V AC minimum between contacts & case for 1 minute
- Mechanical Life: 25,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Nominal Operating Force: JPM Single Pole 3.53N & Double Pole 6.47N, JPL Single Pole 4.51N & Double Pole 9.02N
- Contact Timing: Nonshorting (break before make)
- Travel: Normal position flush with barrier; latchdown position .079” (2.0mm) below normal, Pretravel .059” (1.5mm); Overtravel .071” (1.8mm); Total Travel .130” (3.3mm)
- Materials & Finishes: Housing/Frame & Barrier: UL94V-0 polyamide; Movable Contacts: Silver alloy; Stationary Contacts: Silver alloy; Terminals: Brass with silver plating
- Operating Temp Range: -10°C to +70°C (+14°F to +158°F)
- Humidity Resistance: 90-95% humidity for 96 hours @ 40°C
- Vibration & Shock: 10-55Hz with peak-to-peak amplitude of 1.5mm; 50G acceleration in 6 directions
- Seals & Certifications: Dust resistant inner seal, UL recognized, VDE approved, UL94V-0 flammability, UL & VDE certifications
Buy the NKK Series JP Power Pushbutton Switch: JPM16B
Purchase the NKK JPM16B power push button switch online to ensure reliable manual activation for your electronic devices. Engineered with high dielectric strength and dust-resistant sealing, this switch offers long-lasting durability and safety. Certified under UL94V-0 standards and approved for international use, it guarantees consistent performance even in demanding environments. Its simple push action and robust construction make it ideal for industrial, automation, and control systems. Buy online today for fast delivery and seamless integration into your project or installation needs.
Buy NKK JPM16B power pushbutton switch now and experience unmatched reliability and performance in electronic and industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches JPM16B?
You can click on the BUY or RFQ button to purchase JPM16B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JPM16B?
You can download the JPM16B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JPM16B?
NKK Switches
