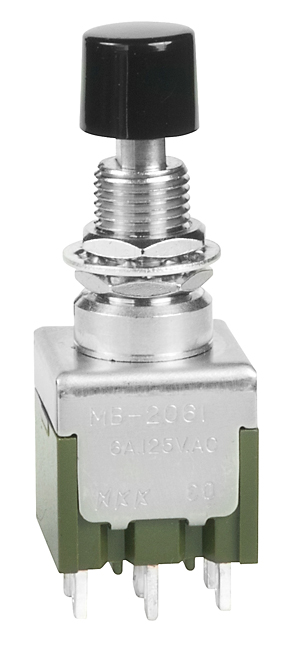

NKK Switches MB2061SS1W01BA Miniature Pushbutton Switch
This miniature pushbutton switch offers reliable performance for electronic applications. It features a compact, durable design with optional splashproof features, high insulation resistance, and rated for 6A at 125V AC or 3A at 250V AC. Ideal for control panels, automation, and instrumentation, it employs a high torque bushing construction, enhanced insulation barriers, and epoxy sealed terminals for contaminant protection. The switch is available with different caps and bushing options, handling frequent operations with a mechanical life of at least 50,000 cycles and electrical life of up to 100,000 cycles. It adheres to UL and CSA standards, with a temperature range of -30°C to +85°C.
NKK Switches MB2061SS1W01BA Miniature Pushbutton Switch Specifications:
- Electrical Capacity: 6A @ 125V AC, 3A @ 250V AC, 0.4VA max @ 28V DC
- Contact Resistance: 10 milliohms maximum for silver contacts
- Insulation Resistance: Minimum 1,000 megohms @ 500V DC
- Dielectric Strength: 1,000V AC for 1 minute between contacts, 1,500V AC between contacts and case
- Mechanical Life: minimum 50,000 operations
- Electrical Life: up to 100,000 operations
- Operating Temperature Range: -30°C to +85°C
- Material: Brass with nickel plating, polyacetal case, epoxy sealed terminals
- Cap Options: Screw-on, snap-on with various diameters and colors
- Bushing: Threaded with keyway, splashproof options available
- Mounting Torque: 1.5Nm for double nut, 0.7Nm for single nut
- Soldering: Hand soldering recommended, wave soldering in Profile A
- Standards: UL Recognized, CSA Certified
- Environmental: Humidity resistance 90-95% for 96 hours @ 40°C, vibration 10-55Hz, shock 50G
Buy the NKK Series MB2000 Miniature Pushbuttons: MB2061SS1W01BA
Order the NKK Miniature Pushbutton Switch MB2061SS1W01BA online today for dependable service in control panels, automation, and instrumentation. Designed with high insulation resistance, epoxy sealed terminals, and a durable construction, this switch supports frequent operations with a mechanical life of 50,000 cycles and electrical life of 100,000 cycles. It features splashproof options, UL recognition, and CSA certification, making it ideal for industrial and electronic applications. Easy to install with minimal maintenance, it ensures long-lasting, reliable performance in a compact form factor.
Get NKK MB2061SS1W01BA today—built for precision, durability, and reliable operation in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches MB2061SS1W01BA?
You can click on the BUY or RFQ button to purchase MB2061SS1W01BA from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2061SS1W01BA?
You can download the MB2061SS1W01BA datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2061SS1W01BA?
NKK Switches
