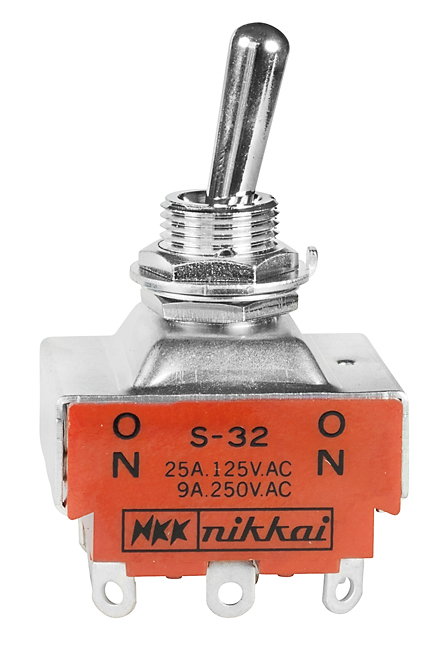

NKK Switches S32 Toggle Switch
Medium/High Capacity Standard Size Toggles are versatile switching components suitable for resistive and inductive loads. Constructed with durable materials including brass with chrome plating, melamine phenol, and zinc-plated steel, they offer reliable electrical and mechanical performance. Designed for switchboards and control panels, these toggles support various configurations such as single-pole, double-pole, and three-pole models with solder lug or screw lug options. They feature a wide operating temperature range from -10°C to +70°C, high contact resistance, insulation resistance, dielectric strength, and long operational life, making them ideal for industrial automation and machinery control applications.
NKK Switches S32 Toggle Switch Specifications:
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 15,000 operations minimum
- Operating Temperature Range: -10°C to +70°C (+14°F to +158°F)
- Toggle Material: Brass with chrome plating
- Bushing Material: Brass with chrome plating
- Case Material: Melamine phenol
- Case Cover Material: Steel with chromate over zinc plating
- Movable Contactor Material: Copper with silver plating
- Movable & Stationary Contact Material: Silver alloy capped on copper with silver plating
- Terminals Material: Brass with tin plating
- Mounting Torque: 2.94Nm (26 lbsin)
- Maximum Panel Thickness: 4.6mm (0.181")
- Soldering Time & Temperature: Manual soldering, see Profile A in supplement section
Buy the Buy NKK Medium/High Capacity Toggle Switch Part Number S32 Online
Purchase the NKK S32 toggle switch online today for your automation and machinery control needs. With its robust construction, wide operating temperature, and multiple pole options, this switch offers dependable performance for resistive and inductive loads. Perfect for panel mounting, it supports manual soldering and features durable materials like brass, zinc, and silver-plated contacts. Ensure your control panels operate smoothly with this high-quality, certified toggle switch, designed to meet industry standards and provide long-term reliability in demanding environments.
Order your NKK S32 toggle switch today and ensure reliable control for your industrial projects with its proven durability and high current ratings.
