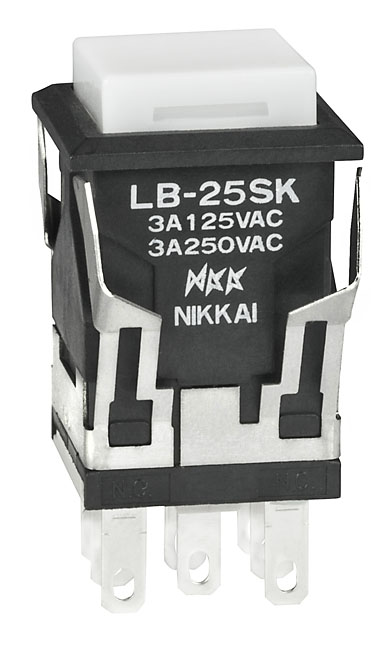

NKK Switches LB25SKW011FB Illuminated Pushbutton
This is a standard size illuminated pushbutton switch with snap-in mounting, ideal for control panels requiring reliable and bright operation. It features a robust housing, quick installation, and multiple illumination options, including LED versions. Suitable for industrial and commercial applications, it offers long electrical and mechanical life, clear indicators, and high resistance to environmental factors. Designed to ensure easy maintenance and consistent performance, this switch provides excellent visibility with full surface illumination and optional color filters. Perfect for operator interfaces, automation systems, and machinery controls, ensuring safe and efficient operation.
NKK Switches LB25SKW011FB Illuminated Pushbutton Specifications:
- Housing Material: Polycarbonate
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute; 1,500V AC between contacts and case for 1 minute
- Mechanical Life: Minimum 1,000,000 operations
- Electrical Life: Minimum 200,000 operations for maintained circuit
- Nominal Operating Force: 4.9N maximum downward force on cap
- Travel: Pretravel 1.5mm; Overtravel 1.5mm; Total Travel 3.0mm
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Environmental: 90-95% humidity for 96 hours @ 40°C, shock resistance of 50G
- Mounting: Snap-in with stainless steel clips, panel seal options available
- Illumination: LED options in red, green, blue, amber, white; includes resistor options for bright and super bright LEDs
- Standards & Certifications: UL Recognized, CSA Certified, recognized at 3A @ 125/250V AC
Buy the Buy NKK Switches Series LB Part Number LB25SKW011FB Online
Acquire the NKK Series LB illuminated pushbutton switch today online for your industrial and control panel needs. Featuring snap-in mounting, long-lasting electrical and mechanical life, and bright LED illumination options, this switch combines reliability with ease of installation. Its robust polycarbonate housing ensures durability in harsh environments. Available in multiple LED colors, resistor options, and with panel seal features, it guarantees safe and efficient operation for automation, machinery, and operator interfaces. Purchase now and enhance your control systems with dependable quality.
Order your NKK Series LB LB25SKW011FB illuminated pushbutton today and give your control panel the dependable, bright illumination it deserves, ensuring clear operation and safety.
Frequently Asked Questions
Where can I buy NKK Switches LB25SKW011FB?
You can click on the BUY or RFQ button to purchase LB25SKW011FB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25SKW011FB?
You can download the LB25SKW011FB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25SKW011FB?
NKK Switches
