NKK Switches CKL12BTW01010 High Security Key Lock
The high security key lock offers exceptional electrical reliability with solder lug connections, designed for secure and demanding applications in industrial environments. It features a rugged die cast housing, high dielectric strength of 1500V between contacts and case, and a long operational life of at least 30,000 cycles. The switch is available with 16mm or 19mm bushings, with different key styles including tubular and flat keys. It withstands harsh conditions like vibrations, shocks, and high humidity, making it ideal for critical security and automation tasks requiring durability and high electrical performance.
NKK Switches CKL12BTW01010 High Security Key Lock Specifications:
- Electrical Capacity: 3A @ 250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 30,000 cycles minimum
- Electrical Life: 20,000 cycles minimum
- Operating Temperature Range: -25°C through +70°C
- Humidity: 90-95% for 240 hours @ 40°C (CKM); 96 hours (CKL)
- Vibration: 10-55Hz, peak-to-peak amplitude of 1.5mm (CKM) or 0.7mm (CKL)
- Shock: 50G (CKM), 30G (CKL)
- Bushing Size: 16mm or 19mm
- Housing Material: Brass with nickel or chrome plating, glass fiber reinforced PBT, zinc alloy
- Contact Material: Copper with silver plating
- Torque: 0.04 mNm for flat key (CKM), 0.05 mNm for flat key (CKL), 0.08 mNm for tubular key (CKM), 0.07 mNm (CKL)

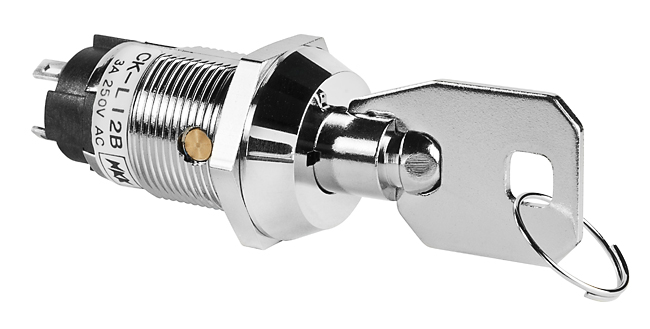

Buy the NKK CKL – Reliable Security Keylock for Industrial Applications
Secure your critical systems with the high security key lock from NKK. Featuring solder lug terminals, rugged housing, and high dielectric strength, it is perfect for industrial security and automation applications. With 3A @ 250V AC capacity, a long operational life, and resistance to harsh environmental factors such as humidity, vibration, and shocks, this switch guarantees durability and dependable performance. Available with 16mm or 19mm bushings and various key styles, it offers flexible installation options for demanding environments.
Order your NKK Series CKL high security key lock today and ensure robust safety and reliable electrical connections for demanding industrial projects.
