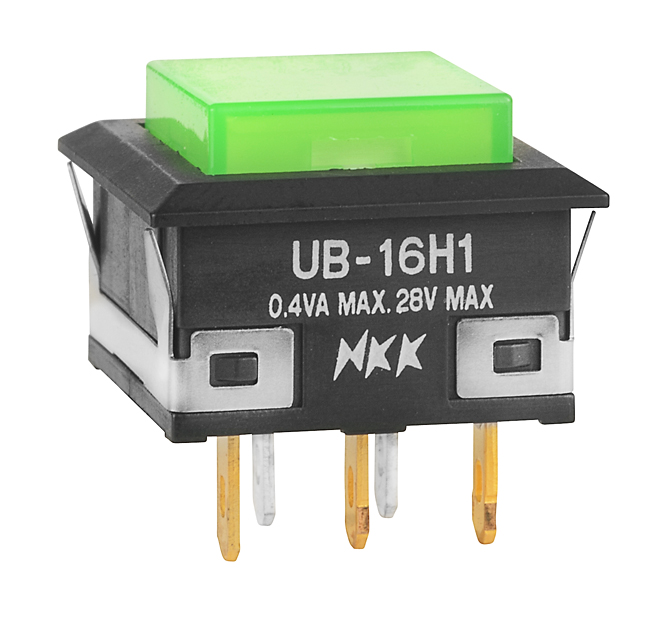

NKK Switches UB16KKG015FFJ Low Profile Pushbutton Switch
A low-profile illuminated pushbutton switch designed for PC and solder mounting. Suitable for various electronic applications where compact and illuminated controls are required.
NKK Switches UB16KKG015FFJ Low Profile Pushbutton Switch Specifications:
- Poles & Circuits: Single Pole SPDT, Double Pole configurations available
- Current Rating: 5A at 125/250V AC, 0.4VA max at 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megaohms min at 500V DC
- Dielectric Strength: 1000V AC contact to contact, 1500V AC contact to case for 1 minute
- Mechanical Life: 1,000,000 operations for momentary, 200,000 operations for resistive load
- Contact Force: 1.9N single pole, 2.55N double pole
- Travel: Pretravel 0.067” (1.7mm), Overtravel 0.024” (0.6mm), Total Travel 0.091” (2.3mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature Range: -20°C to +70°C
- Soldering: Manual and wave soldering profiles specified
- Certifications: UL recognized, CSA certified with specific ordering
Buy the NKK Series UB Low Profile Illuminated Pushbuttons: UB16KKG015FFJ
Order the NKK UB16KKG015FFJ low-profile illuminated pushbutton switch online today. Engineered for durability and compactness, ideal for tight spaces. Features high electrical ratings, long mechanical life, and UL/CSA certification. This switch offers quick actuation, reliable contact performance, and easy soldering — perfect for professional electronics, control panels, and automation systems. Secure your high-quality switch now and ensure optimal functionality for your electronic projects, with fast delivery and expert support. Purchase today for dependable performance in demanding applications.
Get NKK UB16KKG015FFJ today—built for precision, durability, and compact electronic control applications.
Frequently Asked Questions
Where can I buy NKK Switches UB16KKG015FFJ?
You can click on the BUY or RFQ button to purchase UB16KKG015FFJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB16KKG015FFJ?
You can download the UB16KKG015FFJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB16KKG015FFJ?
NKK Switches
