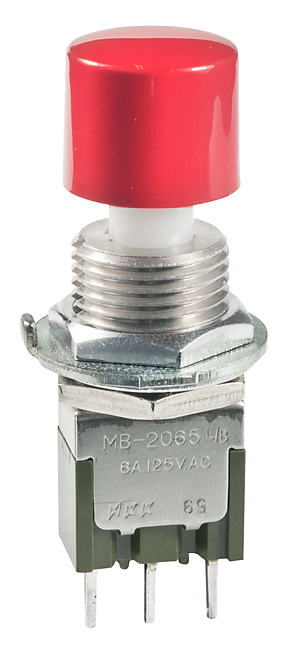

NKK Switches MB2065SB1W03DC Miniature Pushbutton Switch
The MB2065SB1W03DC is a compact, multi-function miniature pushbutton switch designed for reliable performance in electronic applications. It features a 12mm diameter threaded bushing with keyway, silver contacts rated at 6A @ 125V AC and 3A @ 250V AC, and solder lug terminals for secure connections. The switch offers multiple circuit configurations, including DPDT and SPDT options, with momentary and alternate action models available. Its sturdy construction ensures long-lasting durability, making it suitable for industrial control panels, automation systems, and electronic devices requiring precise switching functions in limited spaces.
NKK Switches MB2065SB1W03DC Miniature Pushbutton Switch Specifications:
- Diameter: 12mm threaded bushing with keyway
- Contact Material: Silver over Silver
- Contact Ratings: 6A @ 125V AC, 3A @ 250V AC
- Terminals: Solder Lug
- Switch Configurations: SPDT, DPDT, four-pole options
- Maximum Panel Thickness: 0.217 inches (5.5mm)
- Plunger Type: Plastic with threaded bushing
- Operating Life: 10,000 cycles with splashproof boot, 30,000 cycles without
- Cap Diameter Options: 8.0mm, 10.0mm, 13.2mm, 19.0mm
- Cap Colors: Black, White, Red, Green, Blue, Gray
- Mounting Shapes: Round and Rectangular shrouds, polycarbonate material
- Accessories include screw adaptors for insert caps, optional splashproof boots
- Continue standard hardware includes hex face nuts, lock washers, and locking rings in brass or steel with chrome, zinc, or nickel plating
- Suitable for industrial control, automation systems, and electronic devices requiring reliable switching in tight spaces.
Buy the NKK MB2065SB1W03DC – Reliable Industrial Pushbutton for Control Systems
Order the NKK miniature pushbutton switch MB2065SB1W03DC online for a reliable, space-saving solution. Perfect for automation, control panels, and electronic devices requiring high durability and precise switching. Featuring silver contacts, various circuit configurations, and robust construction, this switch ensures long-term performance in demanding environments. Its compact size with multiple cap options and accessories makes installation flexible and straightforward. Trust NKK’s quality and get your switch today to enhance your electronic or industrial control systems with a dependable and durable component.
Get NKK MB2065SB1W03DC today—built for precision and long-lasting durability in electronic control applications.
Frequently Asked Questions
Where can I buy NKK Switches MB2065SB1W03DC?
You can click on the BUY or RFQ button to purchase MB2065SB1W03DC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2065SB1W03DC?
You can download the MB2065SB1W03DC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2065SB1W03DC?
NKK Switches
